Plates And Pipes Fiber Laser Cutting Machine 1000W 1500W

Laser Machine Cutting 3kw CNC Fiber Laser Cutter Machine Price Metal Cutting Equipment

H series laser cuttingmachine		3015C	4020C	6020C	6025C	8025C
Rated sheet size	X	1500	2000	2000	2500	2500
	Y	3000	4000	6000	6000	8000
Machine tool travel(mm)	X	1530	2030	2030	2530	2530
	Y	3050	4050	6050	6050	8050
	Z	260	260	260	260	260
X/Y axis maximum positioning speed		100	100	100	100	100
Linkage maximum positioning speed(m/min)		140	140	140	140	140
Maximum acceleration		1.4G	1.4G	1.4G	1.4G	1.4G
Positioning accuracy(mm)		0.03	0.03	0.03	0.03	0.03
Repeat positioning accuracy(mm)		0.01	0.01	0.01	0.01	0.01
Maximum load of worktable(kg)		800	1500	2500	3000	4000
Operation terminal		laser dedicated system and laser professional function handheld

Machine Bed Main Production Process

1.Plate welding

2.First time heat treatment: 650ºC,16 hours
3.Powder coating, second time heat treatment, 200ºC,time depend on size
4.Gantry Milling
5.Machine bed production finished

All the other process are done by ourselves.

Spary painting and second time heat treatment done in our Sheet Metal Factory.

Milling done in our Machining Workshop in Laser Manufacturing Base.

So we can not only control the quality better, but also shorten the production time.

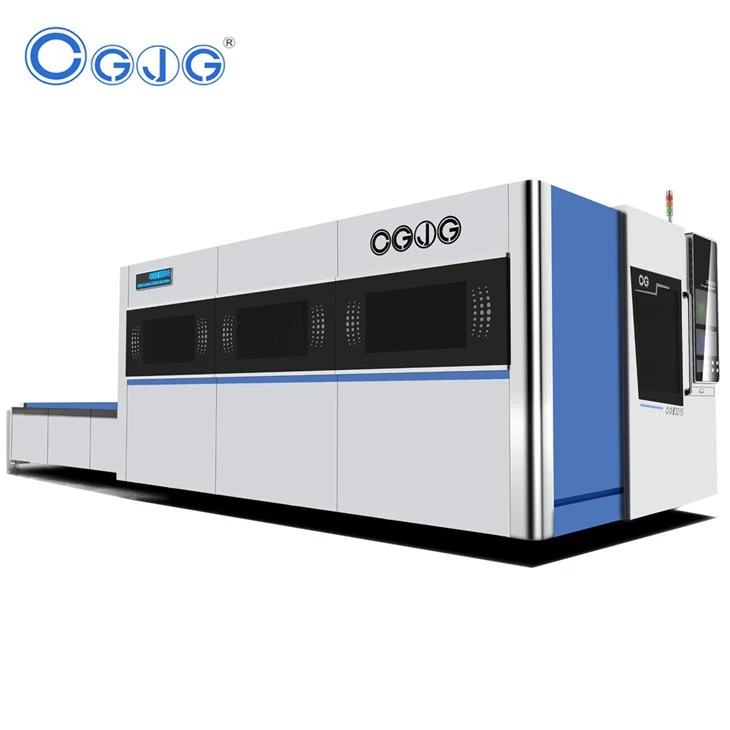

Full Protection Sheet Metal Laser Cutting Machine

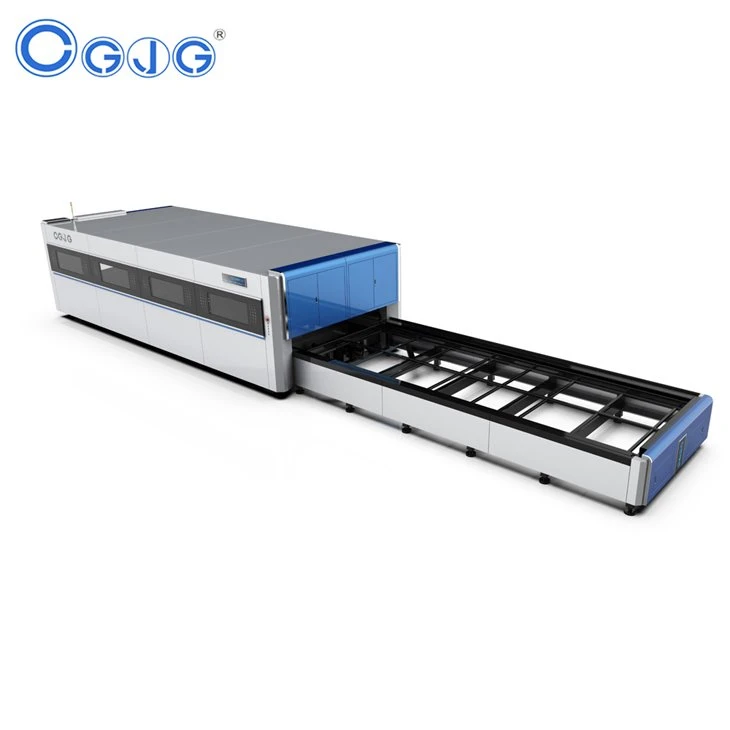

* Parallel interactive workbench, full enclosure protection, safe operation, doubled efficiency
* Lightweight gantry, aviation aluminum extrusion molding process, good dynamic performance and high stability
* Partition negative pressure dust removal, clean and environmentally friendly

Cutting Samples
Fiber laser cutter machine is used to cut mild steel, stainless steel, aluminum alloy, brass and other kinds of steel;applicable to sheet metal cutting, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery,precision components, ships, metallurgical equipment, elevator, household appliances, gifts, arts and crafts, tool processing,advertising, various metal cutting industries.
