Your Professional Plate And Tube Fiber Cutting Machine Supplier
JINAN CGJG LASER EQUIPMENT CO., LTD (hereinafter referred to as CGJG Laser) specializes in the research and development, manufacturing, and sales of high-power laser processing equipment. Our product line encompasses high-power laser cutting machines, laser welding machines, and multi-functional laser processing systems. These products find extensive applications across various industries, including iron and steel metallurgy, non-ferrous metals, automotive and components, aerospace, military electronics, precision instruments, machinery manufacturing, hardware tools, integrated circuits, and solar energy.
Advanced Equipment
CGJG Laser is equipped with a comprehensive array of advanced manufacturing facilities, including numerous high-precision imported CNC machining centers and large-scale gantry milling machines.
R&D Team
Our core R&D team comprises over 20% of our total workforce, ensuring a robust foundation for continuous innovation and technological advancement.
Production Capacity
The company boasts an annual production capacity of 1,000 fiber laser cutting machines, underscoring our commitment to meeting market demands efficiently.
24/7 Online Service
We provide round-the-clock comprehensive customer support services, ensuring prompt responses to all inquiries and service requests at any time.
-
3015 Laser Cutting Machine
1.Over 100000 hours life time. 2.Max. 6m length metal pipe. 3.Suitable for multi-type of laser source. 4.Special designed system for cutting pipes Add to Inquiry -
Iron/Aluminum/Copper/ Fiber Laser Cutter Cutting Machine
1.Plate welding. 2.First time heat treatment: 650ºC,16 hours. 3.Powder coating, second time heat treatment, 200ºC,time depend on size. 4.Gantry Milling. 5.Machine bed production finished. 6.All the Add to Inquiry -
CNC Sheet Metal Or Tube Pipe Fiber Laser Cutting
Product Description Metal Laser Cutting Machine Pipe And Metal Sheet Laser Cutting Machine Product Description CG1530F Fiber Laser Cutting Machine It can carry up to 8000W laser power , so cutting Add to Inquiry -
3015 Laser Cutting Machine
1.Over 100000 hours life time. 2.Max. 6m length metal pipe. 3.Suitable for multi-type of laser source. 4.Special designed system for cutting pipes Add to Inquiry -
Metal Sheet Cut Cutter 1530 2030 2040 CNC Fiber Laser Cut...
1. Cutting metal plate and pipes on one machine. 2. Maximum 6m long metal pipe. 3. Specially designed control system to cut the metal pipe. 4. Heavy steel plate welding machine bed. 5. Auto adjusting Add to Inquiry -
3000w Cnc Laser Metal Cutting Machine
1. Control System: CypCut, Specially Designed for Pipe Cutting and Plate Cutting Function in Same Machine. 2. Advantage: Cutting Plate and Pipe on the Same Machine. 3. Most Popular Laser Power: 1KW Add to Inquiry -
1000w Fiber Laser Cutting Machine Sheet Metal
1. Heavy Steel Plate Welded Machine Table. 2. Aviation Grade Movable Gantry. 3. Cutting Plate and Tubes in the Same Machine. 4. Max. 6 meters Long Steel Pipe Could be Processed. 5. Angle Steel, Add to Inquiry -
3015 Cnc Laser Cutters Machine 1000w
) Application of gantry structure and integrated cast cross-girder to achieve higher rigidity, stability, shock resistance.2) High-performance laser source and stable operating Cypcut system which Add to Inquiry -
3015 Double Table Plate Laser Cutting 2000w
) Application of gantry structure and integrated cast cross-girder to achieve higher rigidity, stability, shock resistance.2) High-performance laser source and stable operating Cypcut system which Add to Inquiry -
Stainless Carbon Steel Aluminum Metal Sheet Cut Cutter 1530
) Application of gantry structure and integrated cast cross-girder to achieve higher rigidity, stability, shock resistance.2) High-performance laser source and stable operating Cypcut system which Add to Inquiry -
1000w 1500w 2kw Fiber Lazer Cutter 1530
1. Low cost and the power consumption is 0.5-1.5kw/h; Customer can cut all kinds of metal sheets by blowing air;2. High-performance. Imported the original packaged fiber laser, with stable Add to Inquiry -

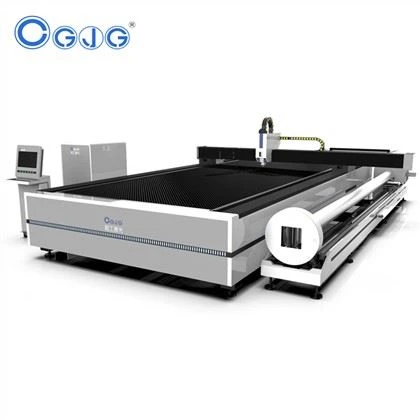

2000W 3000W 4kw CNC Fiber Laser Cutter For Steel Aluminum
1. Low cost and the power consumption is 0.5-1.5kw/h; Customer can cut all kinds of metal sheets by blowing air;2. High-performance. Imported the original packaged fiber laser, with stable Add to Inquiry
Specification of Plate And Tube Fiber Cutting Machine
|
Model |
3015ET（4015ET 6020ET） |
|
Working area |
3000*1500mm |
|
Miximum length of pipe(Options) |
3000mm(or)6000mm |
|
|
Round tube:Φ20mm~Φ120mm; |
|
Laser type |
Fiber laser generator |
|
Laser power(optional) |
500~4000W |
|
Transmission system |
Double serve motor &gantry&rack&pinion |
|
Maximum speed |
±0.03mm/1000mm |
|
Pipe cutting system(optional) |
yes |
|
Maximum speed |
60m/min |
|
Maximum accelerated speed |
1.2G |
|
Position accuracy |
±0.03mm/1000mm |
|
Reposition accuracy |
±0.02mm/1000mm |
|
Graphic format supported |
CAD,DXF(etc) |
|
Power supply |
380V/50Hz/60Hz |
Types of Plate And Tube Fiber Cutting Machine
The plate and tube fiber cutting machines produced by our company mainly include the following types:
Stainless Steel Tube Laser Cutting Machine
Good fuselage makes the equipment work more stably, and the beam beam makes it work faster; Perfect industrial design is more in line with ergonomics; High quality electrical software control system gives the equipment higher cutting accuracy.
Fiber Laser Cutting Machine For Steel Sheet
This is laser cutting maching with exchange worktable and pipe cutting device. The machine is mainly designed to process metal plate, the machine equips individual control station and electric cabinet.
Metal Sheet And Tube Laser Cutting Machine
Full-stroke pneumatic chuck, built-in cylinder, easy to install, clamping and unclamping action realized by side air intake, can clamp a full range of applicable pipe fittings, full stroke, and improve production efficiency.
Advantages of Plate And Tube Fiber Cutting Machine
Versatility
Plate and tube laser cutting machines are versatile, capable of cutting a wide range of materials, including various metals such as stainless steel, aluminum & mild steel etc and . They can handle both flat plate materials and cylindrical tubes or pipes, making them suitable for a diverse range of applications.
Precision
Laser cutting technology provides exceptional precision in cutting, focused laser beams to create clean and high-quality cuts with tight tolerances. This level of precision allows for intricate designs, complex shapes, tight fit-ups, ensuring consistent and accurate results
Efficiency
Laser cutting machines are known for their high cutting speeds, which significantly improve productivity. It can process materials quickly, reducing production time and increasing overall efficiency. They offer faster turnaround times compared to traditional cutting methods and enabling faster completion of projects.
Automation
Equipped with advanced automation features. These include automatic material feeding systems, automatic height detector and integrated CAD/CAM software for precise design. It streamlines the cutting process, minimizes human error, and maximizes efficiency.
Flexibility
Plate and tube laser cutting machines provide excellent design flexibility, allowing for intricate and complex shapes to be cut with ease. They can handle both straight cuts & 3D cuts, enabling the creation of unique and customized parts. This flexibility gives designers and fabricators the freedom to bring their creative ideas to life.
Minimal Waste
Highly efficient process that minimizes material waste, narrow laser beam width allows for exact cutting and reducing the amount of scrap material generated. Additionally, advanced nesting software can optimize the layout of parts on the material sheet or tube, further maximizing material utilization and reducing waste.
Smooth Cuts
Plate and tube cutting machines produce clean cuts with minimal burrs, reducing the need for additional post-processing or finishing. The laser beam melts the material, resulting in smooth edges and clean-cut surfaces, eliminating the need for secondary operations and saving time and resources.
Environmentally Friendly
Results clean and environmentally friendly cutting process. It produces minimal dust, fumes, or harmful emissions and making it a greener option compared to traditional cutting methods. The reduced material waste also contributes to a more sustainable manufacturing process.
Applications of Plate And Tube Fiber Cutting Machine
Can cut steel pipe, stainless steel pipe, cast iron pipe, etc., suitable for natural gas pipe, petroleum pipe, city gas pipe, large diameter chemical, water pipe, etc. Widely used in sheet metal processing, aerospace, aviation, electronics, electrical, high-speed rail and metro accessories, auto parts processing, food machinery, textile machinery, engineering machinery, precision parts, ships, metallurgy equipment, elevators, household appliances, kitchen supplies, tools, processing, decoration, advertising and other metal materials processing and manufacturing industries.
Maximum Cutting Thickness of Plate And Tube Fiber Cutting Machine
|
Material |
1KW |
1.5KW |
2KW |
3KW |
4KW |
6KW |
8kw |
12000W |
|
Carbon Steel(mm) |
0.4-12 |
0.4-16 |
0.4-18 |
0.4-20 |
0.4-25 |
0.4-25 |
0.4-25 |
0.4-45 |
|
Stainless Steel(mm) |
0.4-5 |
0.4-6 |
0.4-8 |
0.4-12 |
0.4-12 |
0.4-20 |
0.4-28 |
0.4-40 |
|
Aluminum (mm) |
0.4-3 |
0.4-5 |
0.4-6 |
0.4-8 |
0.4-12 |
0.4-16 |
0.4-18 |
0.4-22 |
|
Brass (mm) |
0.4-3 |
0.4-5 |
0.4-6 |
0.4-6 |
0.4-8 |
0.4-14 |
0.4-16 |
0.4-20 |
Precautions for Using the Plate And Tube Fiber Cutting Machine
● No one should put their eyes in the laser direction (including red light) at any time.
● When opening the shutters, it is forbidden to keep people and non-work items within the laser irradiation range.
● The operator should wear protective glasses, and it is forbidden to leave the operator during the operation of the plate and tube fiber cutting machine.
● If an abnormality occurs during the use of the machine, please immediately press the emergency stop switch or turn off the main power supply.
● During use, always check the cooling water temperature and working air pressure.
● Operate the equipment with an operating license, follow the safe operating procedures, and strictly prohibit operations by non-machine personnel.
● The laser-equipped plate and tube fiber cutting machine is a Class 4 laser product. The laser is invisible light. The emitted beam, lens reflection, and diffused light may cause harm to the human body (especially the eyes). On-site personnel should pay attention to protection to prevent fire.
● The exhaust gas generated during the laser cutting process will cause greater damage to the operator, thereby ensuring the normal operation of the machine's vacuum cleaner.
● Keep the laser cutting equipment clean and tidy, refuel according to regulations to ensure reasonable lubrication; observe the shift system, properly manage tools and accessories, and will not be lost; stop the machine for inspection immediately after finding it. If the operator cannot handle the fault, the relevant engineer should be notified in time for a thorough overhaul.
● In order to prevent electric shock damage, non-professional maintenance personnel is strictly prohibited to inspect and repair the electrical control part of the plate and tube fiber cutting machine.
Packaging and Shipping
|
Packaging |
Iron support, Anti-rust paint, Plastic film, Foam bumper |
|
Shipping |
We will help you to choose the best shipping way according to your detail requirements. By sea, by air, or by express, etc. |
Our Services
● Two year quality guaranty, the machine with main parts (excluding the consumables) shall be changed free of charge when if any problem during the warranty period.
● Lifetime maintenance free of charge.
● Free training course at our plant.
● 24hours on line service each day, free technical support.
● Machine has been adjusted before delivery. We will take machine photos and make machine working image for you, after gettingyour agreement, then we will book a ship.
● Providing technical services to the door (We have professional engineers to offer machine installation commissioning and maintenance).
● If you have any problem during your use.Our technicianwould help you to judge where the problem is and help you to solve it.
Cooperating Supplier
Our Certifications
We have obtained more than 20 product and technology patents, and more than 30 new patent applications in 2021. The company has passed ISO9001 quality system certification, and its products have obtained EU CE and US FDA certifications. We have a number of scientific research results.
FAQ
As one of the most professional plate and tube fiber cutting machine manufacturers and suppliers in China, we're featured by good service and competitive price. Please rest assured to buy high quality plate and tube fiber cutting machine for sale here from our factory.
