Sheet Fiber Laser Cutting Machine

Your Professional Sheet Fiber Laser Cutting Machine Supplier

JINAN CGJG LASER EQUIPMENT CO., LTD (hereinafter referred to as CGJG Laser) specializes in the research and development, manufacturing, and sales of high-power laser processing equipment. Our product line encompasses high-power laser cutting machines, laser welding machines, and multi-functional laser processing systems. These products find extensive applications across various industries, including iron and steel metallurgy, non-ferrous metals, automotive and components, aerospace, military electronics, precision instruments, machinery manufacturing, hardware tools, integrated circuits, and solar energy.

Advanced Equipment

CGJG Laser is equipped with a comprehensive array of advanced manufacturing facilities, including numerous high-precision imported CNC machining centers and large-scale gantry milling machines.

R&D Team

Our core R&D team comprises over 20% of our total workforce, ensuring a robust foundation for continuous innovation and technological advancement.

Production Capacity

The company boasts an annual production capacity of 1,000 fiber laser cutting machines, underscoring our commitment to meeting market demands efficiently.

24/7 Online Service

We provide round-the-clock comprehensive customer support services, ensuring prompt responses to all inquiries and service requests at any time.

First 12 3 4 5 6 7 Last 1/17

Specification of Sheet Fiber Laser Cutting Machine

Function parameter List			F3015	F4015
Item	Subitem		F3015	F4015
Basic parameter	Working area		3048mm*1524mm	4000mm*1524mm
Basic parameter	Max.linkage speed		100m/min	100m/min
Performance	Max. acceleration		1G	1G
	Table load bearing		1000kg	1200kg
	Machine size		450822551650mm	550022551650mm
	Machine weight		3500kg	4000kg
	Z axis travel		100mm	100mm
	Positioning accuracy		±0.05mm	±0.05mm
	Repositioning accuracy		±0.03mm	±0.03mm
	Φ30mm roundness		≤0.15mm	≤0.15mm
	□30mm adjacent side dimension		≤0.06mm	≤0.06mm
Configuration	Optical system	laser head	WSX/Raytools/Precitec	WSX/Raytools/Precitec
	Optical system	Laser source	MAX/Raycus/IPG	MAX/Raycus/IPG
	Mechanical system	Machine bed	Plate welded bed	Plate welded bed
		Gantry structure	Aviation Aluminum Beam	Aviation Aluminum Beam
		X/Y/Z-axis Servo	Yaskawa	Yaskawa
		Linear Rails	HIWIN/PMI	HIWIN/PMI
		Rack	APEX	APEX
	Electrical system	Control system	CypCut	CypCut
		Display size	21.5 inches	21.5 inches
		Breaker	France Schneider	France Schneider
		Relay	Schneider/ ABB	Schneider/ABB
		Electrical proportional valve	Japan SMC/Germany AVENTICS	Japan SMC/Germany AVENTICS
		O2 gas control valve	Japan SMC	Japan SMC
		N2 gas control valve	Japan SMC	Japan SMC

Types of Sheet Fiber Laser Cutting Machine

The sheet fiber laser cutting machines produced by our company mainly include the following types:

Steel Sheet Fiber Laser Cutting Machine

● Carbon Steel Welded Stronger Bed.
● Value and Accessibility.
● High Speed High Efficiency.
● Single Work Table Open Design.
● Elegant Simple Design Sheet Metal.
● Independent Control Cabinet.
● Aviation Aluminum Gantry.

Aluminum Metal Sheet Cut Cutter

The laser cutting machine focuses the laser emitted from the laser into a laser beam with high power density through the optical path system. The laser beam irradiates the surface of the workpiece to make the workpiece reach the melting point or boiling point. At the same time, the high-pressure gas coaxial with the beam blows away the molten or gasified metal.

CNC Stainless Sheet Metal Fiber Laser Cutting Machine

Adopt the imported excellent performance fiber laser source with small laser spot and high efficiency & speed for good cutting quality with small deformation and smooth beautiful appearance, service life of which up to 100000H.

Cnc Fiber Laser Cutting Machine For Carbon Tubesheet

For cutting a variety of materials, mainly used in carbon steel, stainless steel, a variety of aluminum alloys, brass, copper, aluminum, pickling board, galvanized plate, silicon wafers, electrolytic plates, titanium alloys, manganese alloys, a variety of alloy plates, rare metals and other metal materials of two-dimensional flat cutting.

Advantages of Sheet Fiber Laser Cutting Machine

High Precision
Sheet fiber laser cutting machines offer exceptional accuracy and precision, allowing for clean and precise cuts. They can achieve intricate and complex shapes with minimal tolerances, making them ideal for industries that require high-precision parts.

Speed and Efficiency
Fiber lasers are known for their high cutting speeds, resulting in faster production rates. They can cut through various materials quickly, reducing overall processing time and increasing productivity.

Versatility
Sheet fiber laser cutting machines can process a wide range of materials, including metals (such as steel, aluminum, copper, and brass), plastics, composites, and more. This versatility makes them suitable for a diverse range of industries, including automotive, aerospace, electronics, and architecture.

Reduced Energy Consumption
Compared to traditional CO2 laser cutting machines, fiber lasers are more energy-efficient. They require less power to operate, leading to reduced energy consumption and cost savings.

Minimal Material Waste
The precision and narrow kerf of fiber laser cuts result in minimal material wastage, leading to cost savings and reduced environmental impact.

Automation and Integration
Sheet fiber laser cutting machines can be easily integrated into automated manufacturing systems. They are compatible with CAD/CAM software, allowing for seamless programming and remote control, further enhancing efficiency.

Cleaner and Safer Operation
Fiber lasers produce a focused and concentrated beam, reducing the risk of scattering and making them safer to operate. Additionally, they generate less noise and fewer fumes compared to other cutting methods, creating a cleaner and safer working environment.

Application Industries of Sheet Fiber Laser Cutting Machine

Raycus Max 1kw 2kw 3kw 4kw Laser Cutter Equipment For Sheet Metal

Metal Cut Ipg Raycus Fiber Laser Cutting Machine

● Automotive: In the automotive industry, sheet fiber laser cutting machines are used to cut various elements such as exhaust systems, chassis, and body panels.
● Aerospace: These machines are used to cut engine components, wings, and fuselages for aircraft.
● Construction: In the construction business, sheet fiber laser cutting machine are used to cut metal components for buildings, bridges, and other structures.
● Medical: In the medical industry, these machines are used to cut surgical tools, implants, and other medical devices.
● Electronics: In the electronics industry, sheet fiber laser cutting machine are utilized to cut precise components for electronic devices.
● Signage: In the signage sector, these machines are used to cut lettering, logos, and other designs from diverse materials such as metal.
● Furniture: In the furniture sector, sheet fiber laser cutting machines are used to cut accurate and detailed designs in materials such as carbon steel, stainless steel, aluminum.
● Energy: In the energy industry, these machines are used to cut components for renewable energy systems such as wind turbines and solar panels.

Cutting Thickness of Sheet Fiber Laser Cutting Machine

1000w	Carbon Steel	10mm
	Stainless Steel	5mm
	Aluminum	3mm
	Brass	3mm
2000W	Carbon Steel	20mm
	Stainless Steel	8mm
	Aluminum	6mm
	Brass	5mm
3000W	Carbon Steel	22mm
	Stainless Steel	10mm
	Aluminum	8mm
	Brass	6mm
6000W	Carbon Steel	25mm
	Stainless Steel	20mm
	Aluminum	16mm
	Brass	12mm

Safety Considerations of Using Sheet Fiber Laser Cutting Machine

● NEVER operate system unattended.
● Properly maintained fire extinguisher should always be in the area.
● Always keep the area around cutter free of debris, clutter, and flammable materials.
● Keep interior of the laser cutter clean and free of debris. Visually inspect the interior between uses and clean tray if debris or residue are present.
● DO NOT modify or disable any safety features of the laser system.
● DO NOT operate the laser unless all covers are in place and interlocks are working properly.
● DO NOT look directly into laser beam.
● DO NOT view directly with optical instruments.
● Use accepted materials only. Some materials engraved, marked, or cut with the laser can produce toxic and corrosive fumes.
● DO NOT operate if the view port is damaged, with any doors removed, or if any safety interlocks are defeated
● NEVER defeat laser interlocks built into the cutter. This could allow the beam to escape the laser cutter.

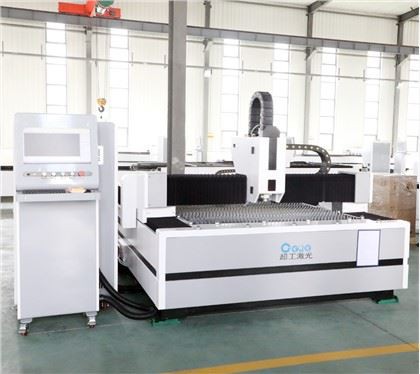

Metal Sheet Laser Cutting Machine CNC System

Packaging

1. Anti-collision package edge: All parts of the machine are covered with some soft materials, mainly the use of pearl wool .
2. Fumigation wooden box:Our wooden box is fumigated, do not need to check the wood, saving the transport time.
3. Whole film packaging machine: Avoid all damage that may occur during delivery. Then we will cover the plastic package tightly to ensure that the soft material is covered intact, also avoiding water and rust. The outermost is a wooden box with a fixed template.
4. Wooden box at the bottom of a solid iron socket for easy handling.


Shipping

We will help you to choose the best shipping way according to your detail requirements. By sea, by air, or by express, etc.

Cooperating Supplier

Our Certifications

We have obtained more than 20 product and technology patents, and more than 30 new patent applications in 2021. The company has passed ISO9001 quality system certification, and its products have obtained EU CE and US FDA certifications. We have a number of scientific research results.


FAQ

Q: How to choose a fiber laser cutting machine?

A: Cutting Quality: Thicker materials require lasers with higher power output.
Productivity: The right machine for the required material thickness ensures faster cutting speeds without sacrificing quality, thereby enhancing productivity.

Q: What is the principle of fiber laser cutting machine?

A: The machine mixes and excites these gases to produce a laser. Fiber lasers use elements such as erbium, ytterbium, neodymium or dysprosium. Mixing these elements together results in a crystalline solid as a fiber, and this is guided into the machine's cutting head through a transport fiber.

Q: What can a fiber laser not cut?

A: Transparent materials, organic substances, highly reflective metals, very thick metals, and ceramics are all examples of materials that fiber lasers either struggle with or cannot cut effectively.

Q: Can you cut glass with a fiber laser?

A: Specific types of glass, such as float glass, may be cut with fiber lasers under carefully controlled conditions, but challenges remain with more complex or treated glass types like tempered and laminated glass.

Q: Can fiber laser cut plywood?

A: Although a fiber laser is capable of cutting plywood or wood, it can start a fire quickly. Due to heat buildup, the wood material catches fire in no time. The worst thing is that the marks created by the fiber laser on the wood are poor. Thus, it is better to avoid fiber lasers for wood and plywood engraving/cutting.

As one of the most professional sheet fiber laser cutting machine manufacturers and suppliers in China, we're featured by good service and competitive price. Please rest assured to buy high quality sheet fiber laser cutting machine for sale here from our factory.
