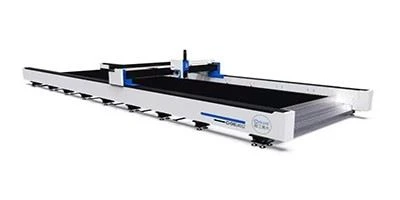

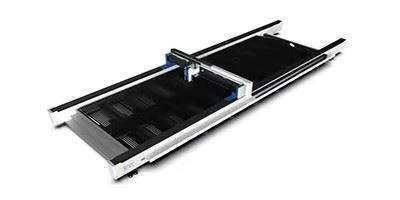

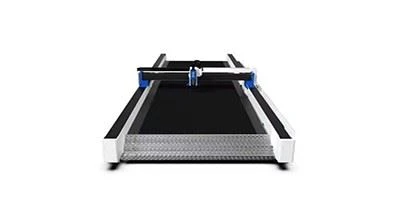

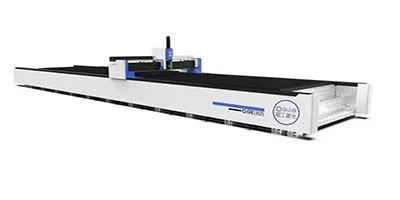

Large Format CNC Sheet Metal Fiber Laser Cutting Machine
Product Introduction:
The aviation aluminum gantry and segmented type welded lathe bed and the advance control system as CYPCUTS make the cutting accuracy of large format machine super accuracy, which can not be matched by cutting accuracy of the frame and plasma machine.
Fast perforation,Intelligent anti-shake cutting of sheet metal edge ,thick plate stable cutting and other industry-leading technologies to ensure the good and high quality of cutting.
Technical Parameters:
Specified voltage and Frequency | 380V 50Hz/60Hz/60A |
Color | White+ Gray |
Logo | Customized Service |
Distance between rails | 4160mm |
Machine overall dimensions | 24300*5500*1800 |
Z Travel | 135mm |
Key Part:
Aviation Aluminum Gantry:
The new generation of gantry frame adopts aerospace standard and is made of high-strength aluminum alloy. After heat treatment, the overall strength , stiffness and stability of the beam are ensured.
The Segmented Rectangular Tube Welded Bed:
This laser cutting machine bed adopts computer finite element analysis to assist the optimization design, the triangular steel plate layout, the design is more reasonable, and the rigidity and strength of the bed are greatly improved. The plate welding bed is subjected to stress relief annealing treatment on the basis of heavier, so that the bed is not easy to deform and is more stable.
Cutting Head:
Intelligent detection
Auto Focus
Servo Driver and Motor-YASKAWA:
Adopt Japan YASKAWA motor ,no adjustment function,real-time use,automatic tuning function,excellent performance.
Gear and Rack-Taiwan Apex:
High precision and transmission efficiency,accurate instantaneous transmission ratio and long service life.
Wireless Remote Control Handle:
Adopt wireless remote control handle and control the pressure of clamp, which make the control and operation simple and reduce the tube deformation.
Water Chiller--S&A Brand:
Dual cooling function,real time alarm,machine protection,can switch to intelligent temperature control mode.
Cutting Material & Sample and Application:
