1000w 1500w 2kw Fiber Lazer Cutter 1530

Product Introduction

One machine can be used for two purposes. The plate cutting part can adjust the table size and single and double platforms according to the needs of customers. The pipe cutting part can effectively cut the personalized pipe with a length of 6 meters and a diameter of less than 230 meters. The crossbeam is made of aviation aluminum casting, and the core components such as servo motor, gear rack, reducer and electronic components are all imported products.

Technical Parameters:

Fiber Laser Cutting Machine Configuration: standard suitable for 2000W 3000W

Laser Source: MAX/RAYCUS 2000W/3000W

Cutting Head: Raytools auto focus cutting head BM111

Control System: CYPCUT controller FS2000

Servo motor: Japan Yaskawa Y: 1300W Y:1300W X: 850W Z:400W

Dual-temperature: S&A/Hanli cooling system;

Guide rail : PMI guide rail

Rack: APEX /YYC rack

Machine bed: Heat treated heavy sheet welding machine bed;

Gantry : Aluminium gantry

Reducer: MOTOVARIO reducer

Automatic lubrication system

Computer: Industry computer

Machine Structure

  The machine structure adopts industrial heavy steel structure, under heat treatment, suffer lower temperature tempering and annealing, won't deform after long time use. the machine base is very stable when the processing.

Taiwan  PMI guide rail  and APEX /YYC rack

  The machine adopts the best linear and block rail from taiwan. We have the feedback from our client that its block even can use
over 10 years and can't break.
The usage lifespan and the product quality definitely can be ensured.

France Schneider Servo System

  The fiber laser machine adopts the imported servo system from France including servo motor and servo driver, The Y axis two servo motor power are 2KW, The X axis servo power is 2KW power, The Z axis servo motor power is 0.4KW power.

CYPCUT Control System

  The best control system in fiber laser machine industry,
It is suitably applied to high power fiber laser machine and can support the rotary device, exchange table and automatic focus cutting head.

S & A Chiller

  Focus on the research and development of industrial cold machine, independent research and development of core parts strictly implement ISO production management system, With excellent quality and leading research retrength.

Raycus Laser Source

  Fiber laser is compact in structure, stable in performance and widely used, Fiber laser has high photoelectric conversion
efficiency, good beam quality and low maintenance cost,(The USA IPG Laser source is optional)

Japan Shimpo Servo Reducer

  Our fiber laser machine adopts the Shimpo Servo Reducer from Japan with low noise when the machine is processing the metal
materials,After many refinements,it has small size in installation but high precision function.

RAYTOOLS Fiber Laser Cutting Head

  Our fiber laser machine install the RAYTOOLS cutting head.
The machine also can optional the BM111 automatic focus cutting head, Fast perforation (especially the thick materials), The plate is not easy to heat, Does not affect the cutting head following.

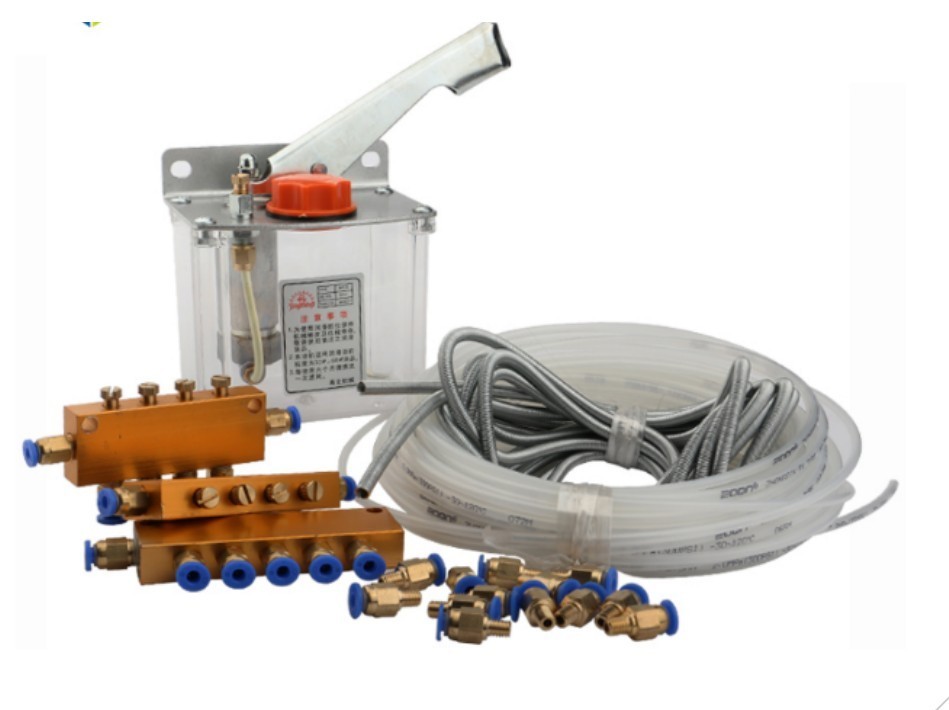

Oil Lubrication System

  This machine accessory is applied to lubricate the machine rail and block in order that it runs smoothly and fast, improving the working efficiency.

Sample
