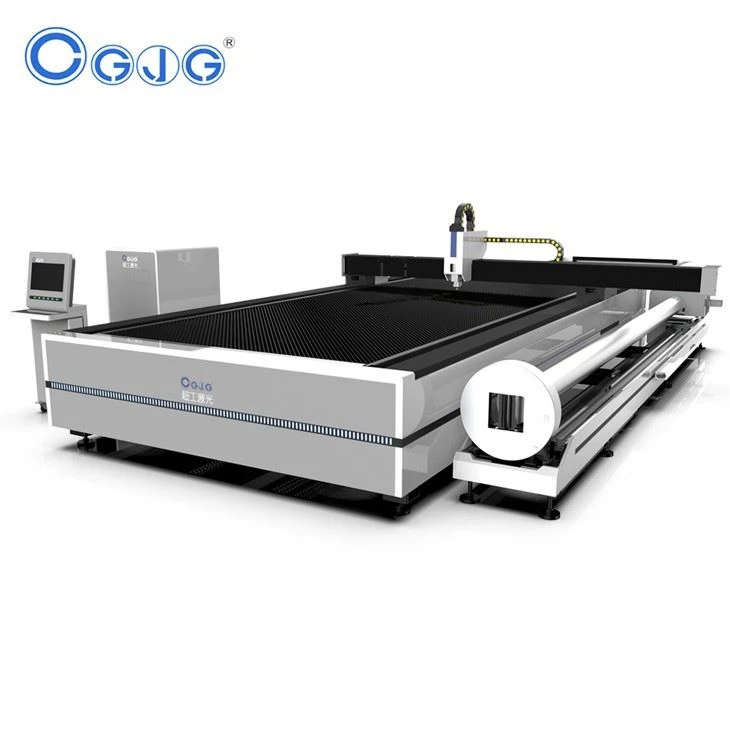

3015 Cnc Laser Cutters Machine 1000w

video

3015 Cnc Laser Cutters Machine 1000w

3015 Cnc Laser Cutters Machine 1000w

) Application of gantry structure and integrated cast cross-girder to achieve higher rigidity, stability, shock resistance. 2) High-performance laser source and stable operating Cypcut system which makes the best cutting effect. 3) The machine owns a perfect cooling system, lubrication system, and dust removal system, to ensure that it can operate stably, efficiently, and durably. 4) The machine is capable of automatic height adjustment to maintain constant focal length and stable cutting quality. 5) The specialized CAD / CAM automatic programming software and automatic nesting software aim to maximally save raw materials.

Send Inquiry

Product Details of3015 Cnc Laser Cutters Machine 1000w

Product Introduction

One machine can be used for two purposes. The plate cutting part can adjust the table size and single and double platforms according to the needs of customers. The pipe cutting part can effectively cut the personalized pipe with a length of 6 meters and a diameter of less than 230 meters. The crossbeam is made of aviation aluminum casting, and the core components such as servo motor, gear rack, reducer and electronic components are all imported products.

1000.2

1000.5

Technical Parameters:

Fiber Laser Cutting Machine Configuration: standard suitable for 2000W 3000W

Laser Source: MAX/RAYCUS 2000W/3000W

Cutting Head: Raytools auto focus cutting head BM111

Control System: CYPCUT controller FS2000

Servo motor: Japan Yaskawa Y: 1300W Y:1300W X: 850W Z:400W

Dual-temperature: S&A/Hanli cooling system;

Guide rail : PMI guide rail

Rack: APEX /YYC rack

Machine bed: Heat treated heavy sheet welding machine bed;

Gantry : Aluminium gantry

Reducer: MOTOVARIO reducer

Automatic lubrication system

Computer: Industry computer

1	Model	3015ET（4015ET 6020ET）
2	Working area	3000*1500mm
3	Miximum length of pipe(Options)	3000mm(or)6000mm
4	Limits of pipe(Customized)	Round tube:Φ20mm~Φ120mm; Square tube :Φ20mm~80mm; Circular tube: Φ20mm~Φ120mm;Square tube: Φ20mm~80mm
5	Laser type	Fiber laser generator
6	Laser power(optional)	500~4000W
7	Transmission system	Double serve motor &gantry&rack&pinion
8	Maximum speed	±0.03mm/1000mm
9	Pipe cutting system(optional)	yes
10	Maximum speed	60m/min
11	Maximum accelerated speed	1.2G
12	Position accuracy	±0.03mm/1000mm
	Reposition accuracy	±0.02mm/1000mm
	Graphic format supported	CAD,DXF(etc)
	Power supply	380V/50Hz/60Hz

3015 cnc laser cutters machine 1000w

Reduce servo motor load, reduce inertia, and save power cost, so that the equipment has high speed, high efficiency. Light weight, small inertia and good dynamic performance.

3015 cnc laser cutters machine 1000w

It is made of multi-section square tube welded, and stiffeners are set inside the tube to increase the strength and tensile property of the bed and the tensile property and stability of the guide rail surface; High temperature annealing treatment can eliminate the stress produced by welding machining. Reduce the loss of laser cutting machine in use, long-term use without deformation.

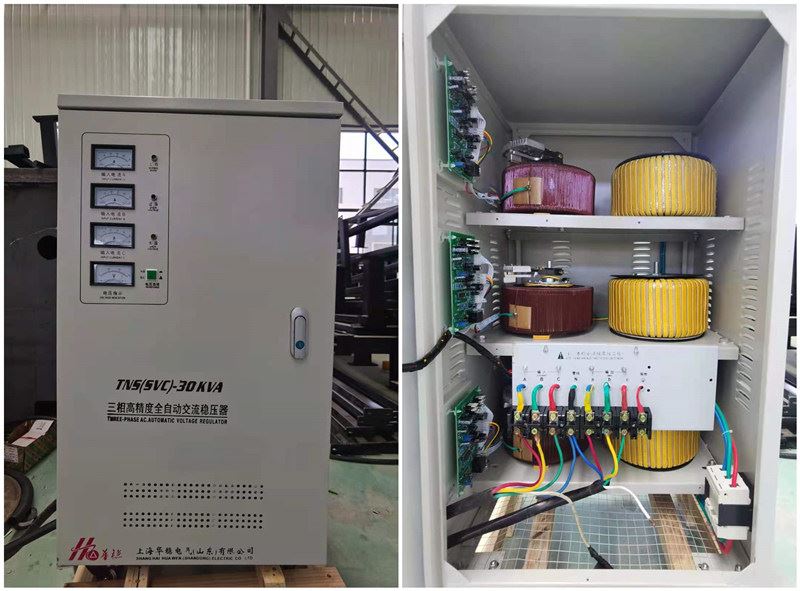

Voltage stabilizer

3015 cnc laser cutters machine 1000w

Japan YASKAWA Servo motor and driver

Function: Accuracy: Closed-loop control of position, speed and torque is achieved.
Speed: high speed performance, the general rated speed can reach 2000 ~ 3000 rpm.
Stable: Suitable for applications with high speed response requirements.
Timeliness: The dynamics of motor acceleration and deceleration are short.
Comfort: fever and noise are significantly reduced.

3015 cnc laser cutters machine 1000w

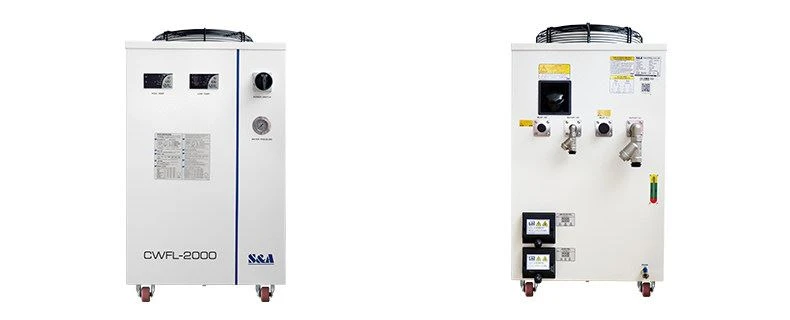

S&A Water Chiller(Optional)

1)Automatic cooling function.

2)It has two control modes: “fixed temperature” and “room temperature coherence”.

3)Cooling source and cutting head

3015 cnc laser cutters machine 1000w

guide ail, rack and pinion-Hiwin/YYC

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

3015 cnc laser cutters machine 1000w

Rotary Tube Cutting, 3m or 6m optional

1530ET Fiber Laser Cutting Machine With 6m long Rotary for metal and tube cut, Suit tube diameter from 20mm to 200mm

Sample

Shipment

Model	CG-3015ET
G.W.	5T
Port	Qingdao
Container Requirement	40 Foot HQ
Package	Iron support, Anti-rust paint, Plastic film, Foam bumper

Application Area

image015_

image019_
