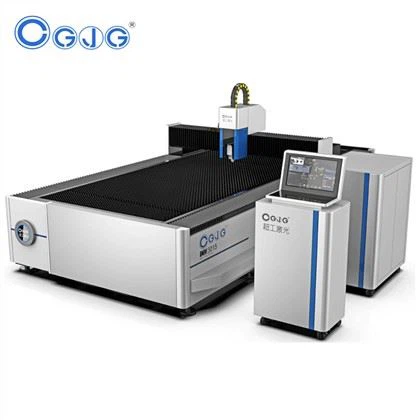

1000W Cnc Fiber Laser Cutting Machine 1500mm X 3000mm
Product Introduction:
With a fully enclosed design, the observation window adopts an European CE Standard laser protective glass；Enhanced-partition Dust Removal makes the smoke generated by cutting can be filtered inside,which is pollution-free and environment-friendly;Real time detection of laser cutting head temperature;Lighting piercing,high speed cutting ;Abnormal intelligent alarm;Intelligent maintenance reminder.
Technical Parameters:
Machine Model | CG-C3015 |
Working area | 3000mm*1500mm（Optional） |
Laser power | 1000W~6000W |
Repeat positioning accuracy | ±0.02mm |
Max. acceleration | 1.4G |
Maximum speed | 140m/min |
Specified voltage and Frequency | 380V 50Hz/60Hz/60A |
Color | White+ Gray |
Logo | Customized Service |
Z Travel | 300mm |
Warranty of core component | 3 Years |
Fiber Laser Cutting Machine Configuration: standard suitable for 2000W 3000W
Laser Source: MAX/RAYCUS 2000W/3000W
Cutting Head: Raytools auto focus cutting head BM111
Control System: CYPCUT controller FS2000
Servo motor: Japan Yaskawa Y: 1300W Y:1300W X: 850W Z:400W
Dual-temperature: S&A/Hanli cooling system;
Guide rail : PMI guide rail
Rack: APEX /YYC rack
Machine bed: Heat treated heavy sheet welding machine bed;
Gantry : Aluminium gantry
Reducer: MOTOVARIO reducer
Automatic lubrication system
Computer: Industry computer
Key Parts:
Working Platform:
The machine can finish the two platforms exchange within 15S by driving the exchange motor with conveter.
Aviation Aluminum Gantry:
The beam is manufactured according to aerospace standard and using high-strength aluminum alloy processing molding after aging & heat treatment for overall strength,rigidity and stability.

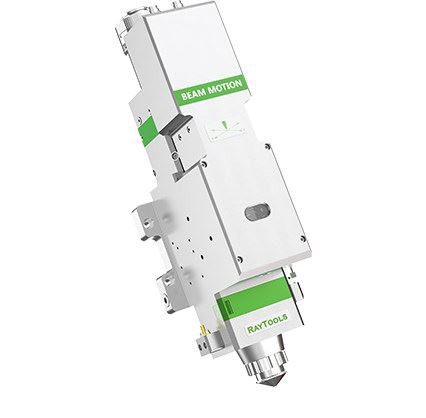

Cutting Head:
Auto Focusing, adjustable height,high sensitivity, real time detection of temperature ,Active anti-collision design and long service life.

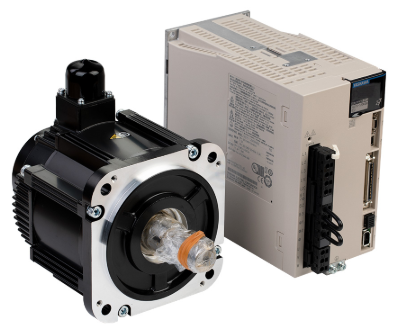

Servo Driver and Motor-YASKAWA:
Adopt Japan YASKAWA motor
High speed and accuracy
High adaptability and stability
Timeliness,short dynamic response time
Less fever and noise
Gear and Rack-Taiwan Apex:
High precision
-Strong load bearing
-High speed
-Low noise
-Long service life
Independent cabinet and interface display:
The intelligent HD displael is convenient to operation.
The electrical control cabinet is dust-proof. Air condition is built-in to the independent control cabinet with automatic constant temperature, which can avoid high temperature damage the electrical components.
Water Chiller--S&A:
It adopt the dual temperature dual control mode and can switch to intelligent temperature control mode.
Cutting Material and Range
Able to cut carbon steel, stainless steel, silicon steel ,galvanized steel, electrolytic plate and other metal materials.
Cutting thickness Range：
1~40MM
Cutting Samples
Application Area:
Suitable for cutting stainless steel,carbon steel,silicon steel,galvanized sheet,electrolytic sheet,aluminum alloy,titanium alloy and other metals.
