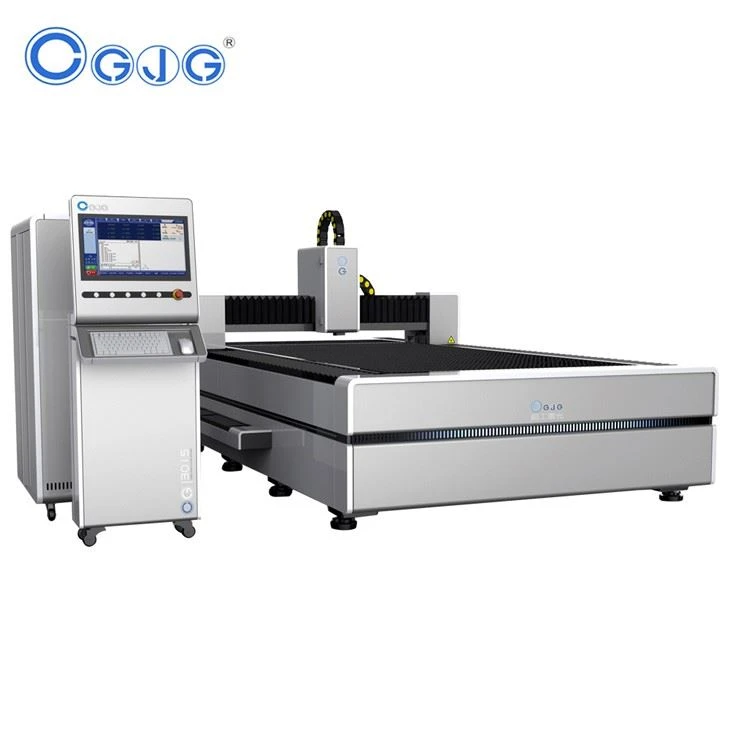

1530 2000w Raycus Fiber Optic Equipment Machine

Product Introduction:

Adopt the imported excellent performance fiber laser source with small laser spot and high efficiency & speed for good cutting quality with small deformation and smooth beautiful appearance, service life of which up to 100000H.

Technical Parameters:

Fiber Laser Cutting Machine Configuration: standard suitable for 2000W 3000W

Laser Source: MAX/RAYCUS 2000W/3000W

Cutting Head: Raytools auto focus cutting head BM111

Control System: CYPCUT controller FS2000

Servo motor: Japan Yaskawa Y: 1300W Y:1300W X: 850W Z:400W

Dual-temperature: S&A/Hanli cooling system;

Guide rail : PMI guide rail

Rack: APEX /YYC rack

Machine bed: Heat treated heavy sheet welding machine bed;

Gantry : Aluminium gantry

Reducer: MOTOVARIO reducer

Automatic lubrication system

Computer: Industry computer

single platform - for
high power use and safety

Simple operation and wide practicability

Machine Structure

  The machine structure adopts industrial heavy steel structure, under heat treatment, suffer lower temperature tempering and annealing, won't deform after long time use. the machine base is very stable when the processing.

Taiwan PMI Linear Rail and Block

  The machine adopts the best linear and block rail from Taiwan. We have the feedback from our client that its block even can use
over 10 years and can't break.
The usage lifespan and the product quality definitely can be ensured.

Japan Yaskawa Servo System

  The fiber laser machine adopts the imported servo system from Japan including servo motor and servo drive,The Y axis two 2KW ,The Xaxis servo power is 2KW power,The Z axis servo motor power is 0.4KW power.

CYPCUT Control System

  The best control system in fiber laser machine industry,
It is suitably applied to high power fiber laser machine and can support the rotary device, exchange table and automatic focus cutting head.

S & A Chiller

  Focus on the research and development of industrial cold machine, independent research and development of core parts strictly implement ISO production management system, With excellent quality and leading research retrength.

Raycus Laser Source

  Fiber laser is compact in structure, stable in performance and widely used, Fiber laser has high photoelectric conversion
efficiency, good beam quality and low maintenance cost,(The USA IPG Laser source is optional)

Japan Shimpo Servo Reducer

  Our fiber laser machine adopts the Shimpo Servo Reducer from Japan with low noise when the machine is processing the metal
materials,After many refinements,it has small size in installation but high precision function.

Raytools Fiber Laser Cutting Head

Raytools automatic focus cutting head, Fast perforation (especially the thick materials), The plate is not easy to heat, Does not affect the cutting head following.

Oil Lubrication System

  This machine accessory is applied to lubricate the machine rail and block in order that it runs smoothly and fast, improving the working efficiency.

For cutting a variety of materials, mainly used in carbon steel, stainless steel, a variety of aluminum alloys, brass, copper, aluminum, pickling board, galvanized plate, silicon wafers, electrolytic plates, titanium alloys, manganese alloys, a variety of alloy plates, rare metals and other metal materials of two-dimensional flat cutting.

Cutting Range：

Carbon Steel: 0.5-16mm

Stainless Steel: 0.5-5mm

Aluminum alloy:0.5-5mm

Brass: 0.5-3mm

Cutting Samples

Application Area

Widely used in household appliance, sheet metal chassis frame, hardware, advertising signs, auto parts, display equipment, various metal products, sheet metal cutting and processing industries.
