Product Description

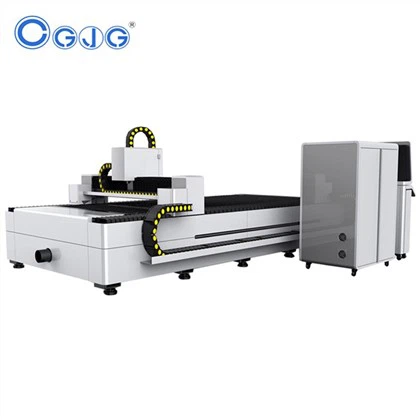

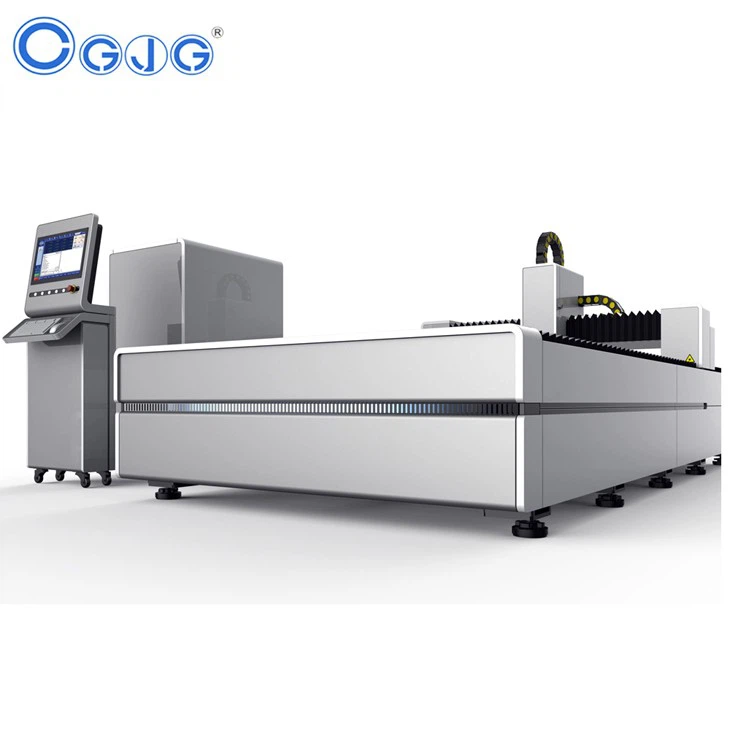

CG-3015H Open type fiber laser cutting machine, the whole machine adopts a rack and pinion drive system, specially designed for all kinds of metal sheets. It is easy for users to operate and maintain. At the same time, the strict assembly process ensures the stable operation of the machine with high cutting precision. Optical fiber laser cutting machine providing users with powerful cutting ability and efficiency with imported top-grade accessories, which is a good choice for users to process economic type.

Parameters of laser cutting machine

Model	CG-3015H /CG-4015/CG-4020/CG-6025/CG-13025
Laser type	Fiber laser
Laser source	Raycus OR other Brand
Control System	Cypcut
Laser wavelength	1070nm
Laser output power	1000W-6000W
Cutting area	3000X1500mm/4000X1500mm/4000X2000mm/6000X2500mm/13000X2500mm
Min. line width	<0.1mm
Laser source	Raycus/ MAX / IPG
Repeatability	±0.02mm
Operating temperature	0~ 40ºC
Electricity demand	380V/50Hz
Cooling method	Water cooling
Continuous working time	24 hours
Max. operating speed	120m/min
Max. acceleration	1.2G
X/Y positioning accuracy	0.03mm
Min. slit width	0.15mm

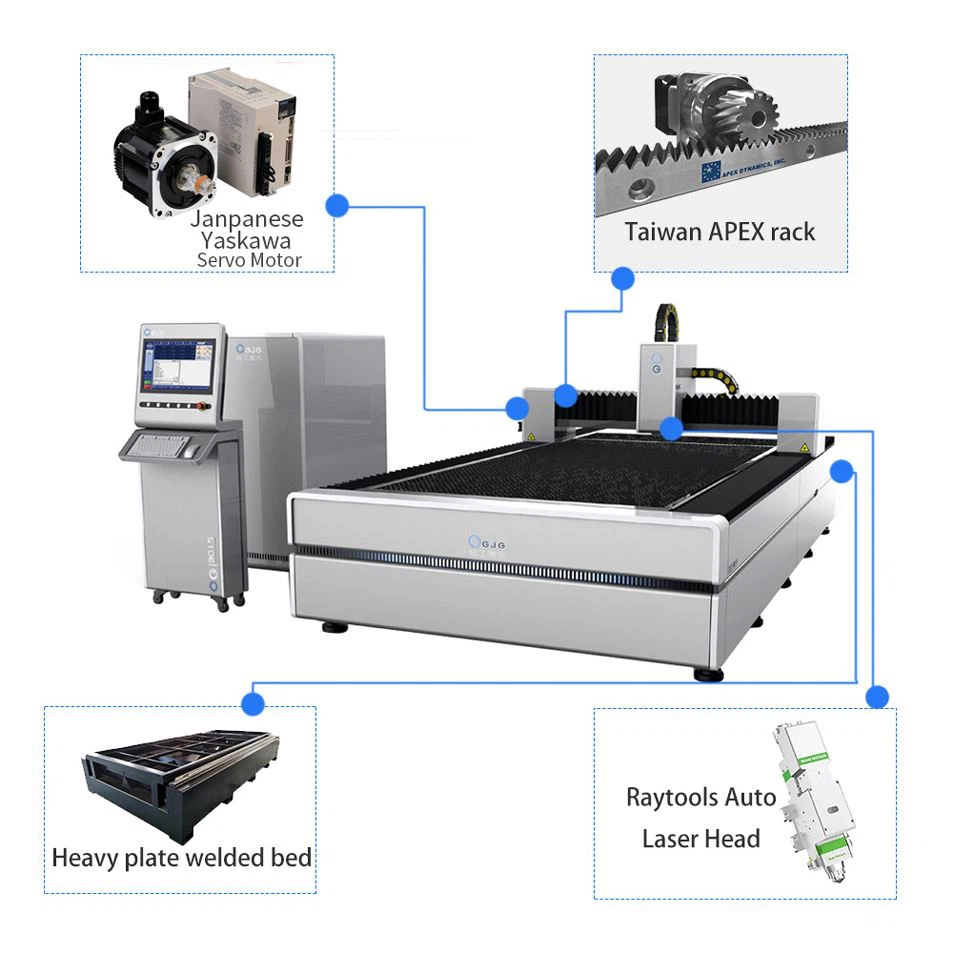

	Carbon Steel Welded Machine Bed
	3th Generation Aviation Aluminum Beam
	Raycus/MAX/IPG Laser Source
	RayTools/Precitec/WSX Cutting Head
	Taiwan APEX Rack
	S&A/Hanli Water Chiller Choose

Cutting Samples

Applicable Industry:
Widely used in advertising decoration, kitchen utensils, engineering machinery, steel, sheet metal chassis, automobile,
air-conditioning manufacturing, sheet metal cutting processing

Applicable materials:
Mainly aimed at cutting stainless steel, carbon steel, galvanized sheet, fast cutting of various kinds ofmetal material such as alloy plate.

Cutting Capacity

Material

Carbon steel(O2)

Thickness(mm)

500w

Cutting speed
(m/min)

7.0~8.0

4.0~5.0

2.0~2.5

1.5~20

12~1.5

1.0~1.4

1000w

7.0~9.0

5.0-6.0

2.5~3.0

2.0~2.4

15~1.8

1.4~1.6

1.0~12

0.7~0.85

0.6~0.7

1500w

7.0~11.0

5.0-6.5

28~3.8

2.5~3.2

1.8~25

1.6~2.2

1.1~1.5

1.0~1.2

0.9~1.0

2000w

7.0~120

5.0-6.5

3.0~4.6

2.8-4.0

2.2~3.2

2.0~2.8

1.4~2.0

1.1~1.4

0.9~1.2

0.6~0.75

3000w

7.0~12.0

5.0~7.0

3.5~5.0

3.0~4.2

2.5~3.6

2.4~3.0

1.8~2.4

1.2~1.8

1.0~1.5

0.7~0.85

0.6~0.75

0.5-0.65

0.4~0.6

4000w

7.0~12.0

5.0~7.0

3.5~5.0

3.0~4.2

2.5~3.6

2.4~3.0

1.8~2.4

1.2~1.8

1.0~1.5

0.7~0.85

0.6~0.75

0.5-0.65

0.4~0.6

6000w

7.0~12.0

5.0~7.0

3.5~5.0

3.0~4.2

2.5~3.6

2.4~3.0

1.8~2.4

1.2~1.8

1.0~1.5

0.7~0.85

0.6~0.75

0.5-0.65

0.4~0.6

8000w

7.0~12.0

5.0~7.0

3.5~5.0

3.0~4.2

2.5~3.6

2.4~3.0

1.8~2.4

1.2~1.8

1.0~1.5

0.7~0.85

0.6~0.75

0.5-0.65

0.4~0.6

10000w

7.0~12.0

5.0~7.0

3.5~5.0

3.0~4.2

2.5~3.6

2.4~3.0

1.8~2.4

1.2~1.8

1.0~1.5

0.7~0.85

0.6~0.75

0.5-0.65

0.4~0.6

12000w

7.0~12.0

5.0~7.0

3.5~5.0

3.0~4.2

2.5~3.6

2.4~3.0

1.8~2.4

1.2~1.8

1.0~1.5

0.7~0.85

0.6~0.75

0.5-0.65

0.4~0.6

Material

Stainless steel(N2)

Thickness(mm)

500w

Cutting speed
(m/min)

10~12

2~4.0

0.7~2.0

1000w

15~18

4.5~6.0

2.0~2.4

1.0~1.5

0.7~0.85

1500w

10~15

5.0~7.0

3.0~4.0

2.0~2.8

1.2~1.7

0.7~1.0

0.5~0.7

2000w

35~50

10~15

5.0~7.0

3. 5~4.5

1.8~2.5

0.7~0.8

0.5~0.6

3000w

45~55

15~23

7.0~11.0

4.0~-6.0

2.5~4.0

2.0~3.2

1.2~1.8

0.7~0.9

0.3~0.4

4000w

45~55

18~27

10~15

5.0~7.5

4.0~5.0

3.0~4.0

1.5~2.6

0.7~1.3

0.4~0.6

0.3~0.5

6000w

45~55

20~35

15~20

10~14

8.0~12.0

6.0~8.0

3.5~4.0

1.8~2.2

1.2~1.5

0.8~1.2

0.6~0.8

0.3~0.4

8000w

45~55

23~37

19~24

14~17

11~14

8.0~9.5

5.0~5.5

2.5~3.0

1.8~2.1

1.5~1.8

1.0~1.3

0.6~0.75

0.3~0.5

10000w

45~55

26~40

23~28

18~22

14~17

9.5~11.0

6.5~7.0

3.4~3.9

2.6~3.1

2.2~2.5

1.7~2.0

1.0~1.2

0.4~0.6

12000w

45~55

28~43

27~32

22~26

16~18

10.5~12

7.5~8.0

4.0~4.5

3.3~3.6

2.7~3.0

2.2~2.5

1.4~1.6

0.6~0.8

Description:

Fiber laser cutting machine is the best cutting tool for thin sheet metal cutting, especially for carbon steel, stainless steel
cutting, it combines function of compact layout, stable optical link, convenient operation and reliable performance in one.
Advantages:
1. High quality in cutting edge precision in cutting. Excellent in stability.
2.Cutting large format and suitable for cutting more material.
3.drawer and air valve for work convenience.
4.High performance-price ratio
5.Low cost for using
6.Low fees for the future maintenance

Workshop
Shandong Chaogong Laser Technology Co., Ltd. specializes in R&D and production of various laser equipment, such as laser cutting. All series machines are with Two-year's warranty. Also our service support various languages, like English, French, Arabic, Spanish, Russian, Korean, Portuguese, German and so on. Meanwhile, customized equipment are available according to different requirements.
Within the field, Chaogong has passed CE and FDA qualifications. Moreover, Chaogong has successfully practiced ISO quality system and 5S management, which assures high-efficient production and products' reliability. After years of hard work, Chaogong products have made presence in more than 100 Countries such as North America, West Europe, South Asia, South America and Mid East etc.. Facing the chances and challenges of Global Economic Integration, as well as being offered with opportunities of Knowledge Economy Era, the self-motivated Chaogong stuff, brave and passionate, initiatively implement the enterprise management policy: "Scientific Management, Continuous Improvement, Rapid Development, Credit First, Quality First". We aim to be a professional, branding, and International suppliers for various industrial solutions.

Honor Certificate:

FAQ

Q1: How can I choose the most suitable machine?
A: In order to recommend you the most suitable machine model, just tell us below information
1.What is your material
2.The size of material
3.The thickness of material

Q2: How can I get the information and quotation of this product quickly?
A: Please leave your email, WhatsApp or wechat, and we will arrange the sales manager to contact you asap.

Q3: What's material can fiber laser cut?
A: All kinds of metal, such as Stainless Steel,Carbon Steel, Mild Steel, Galvanized Steel, Aluminum, copper, etc.

Q4: This is the first time I use this kind of machine, is it easy to operate?
A: The machine is mainly controlled by software.Simple, not complicated.Before delivery, we will make a simple operation manual and videos.Generally speaking, an operator who is not familiar with the fiber laser machine can still operate it well.According to customer requirements, we can send technicians to the customer's factory for machine training, or the customer to come to our factory for machine training.

Q5: If there is a problem with the machine, what about the after-sales service?
A: 1)The warranty of laser source is 2 years.
2)The warranty of the machine is 2 years(main spare parts),except for the consumable parts such as ceramic ring, focus lens,
nozzle etc. Warranty counts from the date marked on the label of the laser source and machine.
3)Except the damage artificially, seller is responsible for offering the fittings free of charge during the warranty period.
4)Exceeding the warranty period, parts need to be repaired or changed, shall be paid.
