2000W Sheet Metal Laser Cutting Machine
Fiber source with excellent stable performance and service life of 100,000 hours.
Send Inquiry
Product Details of2000W Sheet Metal Laser Cutting Machine
Product Introduction:
The machine adopt the excellent performence transmission and servo motor and suitable for cutting various metals.
At the same time, the machine has the advantages such as Low cost, Free laser maintenance , high speed and high efficiency.
Technical Parameters:
Machine Model | CG-4015 |
Working area | 4000mm*1500mm（Optional） |
Laser power | 1000W~6000W |
Repeat positioning accuracy | ±0.02mm |
Max. acceleration | 1.0G |
Maximum speed | 90m/min |
Specified voltage and Frequency | 380V 50Hz/60Hz/60A |
Color | White +Gray |
Logo | Customized Service |
Z Travel | 100mm |
Key Parts:
Aviation Aluminum Gantry:
The beam is made of high-strength aluminum alloy, rough machined after heat treatment, and treated with secondary vibration caused by vibration isolation to ensure the overall strength, stiffness and stability of the beam.
Segmented Rectangular Welded Bed:
The lathe bed adopts an integral welding structure. The specaltreatment ,such as the stree relief annealing treatment and so on, can well resolve the stree problems caused by welding and greatly improve the stability of the machine tool.
Cutting Head:
High adjustment accuracy, adjustment range + 10mm ~ - 12mm, accuracy ≤ 50" μ m. It is applicable to 0 ~ 20mm different types of plates.
Complete the rapid perforation of thick plates and automatic cutting of plates with different thicknesses and materials
The optical and water-cooled design is optimized, so that the laser head can work stably for a long time at high power
Transmission and Precision:
CG Fiber laser cutting machine is equipped with Japan YASKAWA Servo Motor, France MOTOVARIO reducer. It makes sure that the machine positioning accuracy is ±0.02mm,and the cutting acceleration is 1.0G. The service life is more than 10 years.
Servo Driver and Motor-YASKAWA:
Adopt Japan YASKAWA motor with excellent performance，high accuracy and long service life.
Gear and Rack-Taiwan Apex:
-High precision
-Strong load bearing capacity
-High speed
-Low noise
-Long service life
Cutting Material and Range
It is suitable for cutting carbon steel,stainless steel,aluminum,copper and alloy materials.

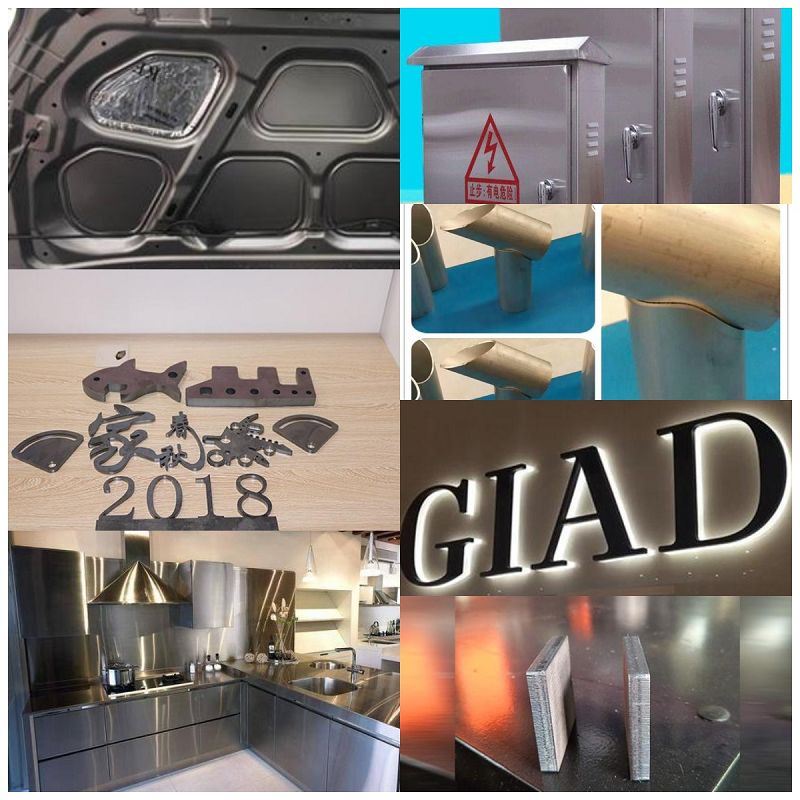

Cutting Samples
Application Area
It is widely used in rail transit, machinery manufacturing, elevator panel cutting, metal crafts, decorative advertising and other industries
Application materials include stainless steel plate, carbon steel plate, metal plate, pipe, etc.
