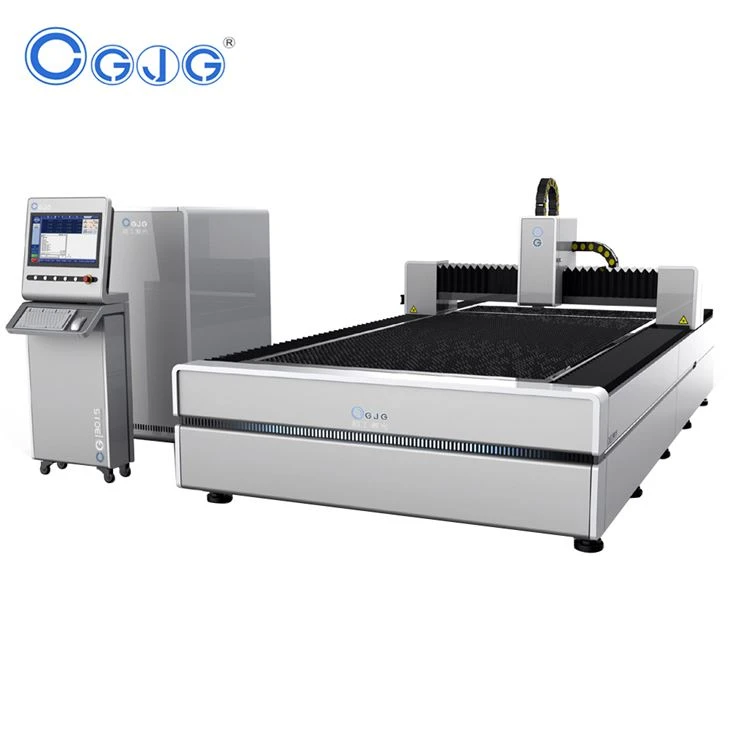

Fiber Laser Cutting Machine Configuration: standard suitable for 1000W
Laser Source: MAX/RAYCUS 1000W
Cutting Head: Raytools auto focus cutting head BM110
Control System: CYPCUT controller FS2000
Servo motor: Japan Yaskawa Y: 850W Y:850W X: 850W Z:400W
Dual-temperature: S&A/Hanli cooling system;
Guide rail : PMI guide rail
Rack: APEX /YYC rack
Machine bed: Heat treated heavy sheet welding machine bed;
Gantry : Aluminium gantry
Reducer: MOTOVARIO reducer
Automatic lubrication system
Computer: Industry computer
Function parameter List | ET3015 | ET4015 | ||
Item | Subitem | |||
Basic parameter | Working area | 3048mm*1524mm | 4000mm*1524mm | |
Max.linkage speed | 100m/min | 100m/min | ||
Performance | Max. acceleration | 1G | 1G | |
Table load bearing | 1000kg | 1200kg | ||
Machine size | 4508*2255*1650mm | 5500*2255*1650mm | ||
Machine weight | 3500kg | 4000kg | ||
Z axis travel | 100mm | 100mm | ||
Positioning accuracy | ±0.05mm | ±0.05mm | ||
Repositioning accuracy | ±0.03mm | ±0.03mm | ||
Φ30mm roundness | ≤0.15mm | ≤0.15mm | ||
□30mm adjacent side dimension | ≤0.06mm | ≤0.06mm | ||
Configuration | Optical system | laser head | WSX/Raytools/Precitec | WSX/Raytools/Precitec |
Laser source | MAX/Raycus/IPG | MAX/Raycus/IPG | ||
mechanical system | Machine bed | Plate welded bed | Plate welded bed | |
Gantry structure | Aviation Aluminum Beam | Aviation Aluminum Beam | ||
X/Y/Z-axis Servo | Yaskawa | Yaskawa | ||
Linear Rails | HIWIN/PMI | HIWIN/PMI | ||
Rack | APEX | APEX | ||
Electrical system | Control system | CypCut | CypCut | |
Display size | 21.5 inches | 21.5 inches | ||
Breaker | France Schneider | France Schneider | ||
Relay | Schneider/ ABB | Schneider/ABB | ||
Electrical proportional valve | Japan SMC/Germany AVENTICS | Japan SMC/Germany AVENTICS | ||
O2 gas control valve | Japan SMC | Japan SMC | ||
N2 gas control valve | Japan SMC | Japan SMC | ||
Machine Details:
| Carbon Steel Welded Machine Bed |
| The Third Generation Aviation Aluminum Beam |
| Raycus/MAX/IPG Laser Source Choose |
| RayTools/Precitec/WSX Cutting Head Choose Automatic focus, reduce human intervention, focusing speed 10 m/min, repeat accuracy of 50 microns. 25 mm carbon steel sheet pre punch time < 3 s @ 3000 w, greatly improve cutting efficiency. |
| Taiwan APEX Rack |
| S&A/Hanli Water Chiller Choose |
Honor Certificate:
Warranty and service
Three years warranty for machine. English technical to door service.
English manual and Video CD for machine using and maintenance.We offer free training in our factory,
Free accessories :Software ,manual, book, cd videos, USBcontrol
1.Pre-sales service A. Free sample making For free sample making/testing, please send your samples or products CAD Graphics to our company in China. Try before you buy.
B. Progressing Solution Design According to customer’s product processing requirement, we can design the unique solution that supports higher manufacturing efficiency and better processing quality for customer.
2.After-sales service: Training to install(3options): A. We will supply the machine with training video and user's manual in English for installing, operation, maintenance and trouble-shooting, and shall give technical guide by e-mail, fax, telephone/MSN/ICQ and so on, when you meet some problems of installation, using or adjusting. B. You can come to our factory for training. CHAOGONG will offer professional guide. Direct and effective face-to-face training. Here we have assembled equipments, all sorts of tools and testing facility,we will also provide accomadation during training period. Training Time: 1-10 working days.
What's the max. cutting thickness?
Cutting thickness is related to laser power.
300W: 1.5mm stainless steel, 4mm carbon steel
500W: 3mm stainless steel, 6mm carbon steel
1000W: 5mm stainless steel, 12mm carbon steel
2000W: 10mm stainless steel, 18mm carbon steel
Note: only 1KW or above fiber laser could cut Aluminum, Copper, Brass and other high reflection sheet metal.
