H3015 Metal Cutter Laser Cutting Machine
2 High Speed High Efficiency
3 1KW-6KW IPG/RAYCUS/MAX Laser Source
4 Single Work Table Open Design
5 Independent Control Cabinet
Send Inquiry
Product Details ofH3015 Metal Cutter Laser Cutting Machine
Chaogong Laser is a Professional laser equipment manufacturer.H3015 Series open type fiber laser cutting machine is designed for high precision sheet metal processing. Used for cutting various metals stainless steel carbon steel brass.Elegant appearance and easy operation deeply welcomed by customers.Laser Source IPG/RAYCUS/MAX,fiber laser power 1KW to 6KW,ensure a big cutting ability,stable performance and lifespan is over 100,000 hours. CGJG fiber laser cutting machine is equipped with Japanese Yaskawa motor, French MOTOVARIO and Taiwan APEX rack. The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1G. The working life is up to 10 years.
Product Feature:
1.Carbon Steel Welded Stronger Bed.
2.Value and Accessibility.
3.High Speed High Efficiency.
4.1KW-6KW IPG/RAYCUS/MAX Laser Source.
5.Single Work Table Open Design.
6.Elegant Simple Design Sheet Metal.
7.Independent Control Cabinet.
8.Aviation Aluminum Gantry.
Technical Parameter:
Function parameter List |
H3015 |
H4015 | ||
Item | Subitem | |||
Basic parameter | Working area | 3048mm*1524mm | 4000mm*1524mm | |
Max.linkage speed | 100m/min | 100m/min | ||
Performance | Max. acceleration | 1G | 1G | |
Table load bearing | 1000kg | 1200kg | ||
Machine size | 4508*2255*1650mm | 5500*2255*1650mm | ||
Machine weight | 3500kg | 4000kg | ||
Z axis travel | 100mm | 100mm | ||
Positioning accuracy | ±0.05mm | ±0.05mm | ||
Repositioning accuracy | ±0.03mm | ±0.03mm | ||
Φ30mm roundness | ≤0.15mm | ≤0.15mm | ||
□30mm adjacent side dimension | ≤0.06mm | ≤0.06mm | ||
Configuration | Optical system | laser head | WSX/Raytools/Precitec | WSX/Raytools/Precitec |
Laser source | MAX/Raycus/IPG | MAX/Raycus/IPG | ||
mechanical system | Machine bed | Plate welded bed | Plate welded bed | |
Gantry structure | Aviation Aluminum Beam | Aviation Aluminum Beam | ||
X/Y/Z-axis Servo | Yaskawa | Yaskawa | ||
Linear Rails | HIWIN/PMI | HIWIN/PMI | ||
Rack | APEX | APEX | ||
Electrical system | Control system | CypCut | CypCut | |
Display size | 21.5 inches | 21.5 inches | ||
Breaker | France Schneider | France Schneider | ||
Relay | Schneider/ ABB | Schneider/ABB | ||
Electrical proportional valve | Japan SMC/Germany AVENTICS | Japan SMC/Germany AVENTICS | ||
O2 gas control valve | Japan SMC | Japan SMC | ||
N2 gas control valve | Japan SMC | Japan SMC | ||
Machine Details:
 |
Carbon Steel Welded Machine Bed |
 |
3th Generation Aviation Aluminum Beam |
 |
Raycus/MAX/IPG Laser Source |
 |
RayTools/Precitec/WSX Cutting Head |
|

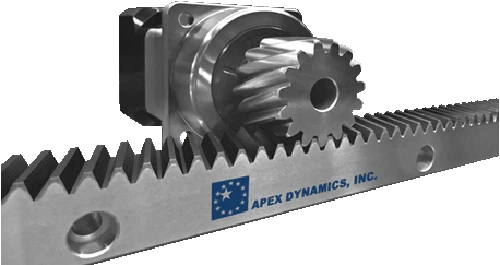

Taiwan APEX Rack |
 |

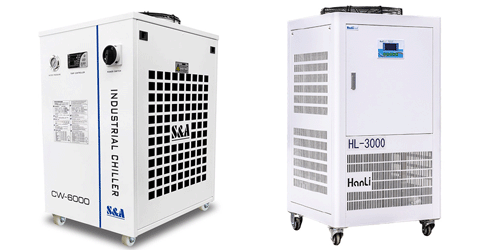

S&A/Hanli Water Chiller Choose |
Industry Applications:
H3015 fiber laser cutting machine as one classic model, widely used in many common areas of our life, such as processing of stainless steel kitchenware, storage cabinet and other cabinets, is closely related to people's daily life.Used for cutting a variety of metal plates, pipes (add pipe cutting device), mainly used in stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum, various alloy plate, rare metal and other metal materials.
Honor Certificate:
FAQ:
Q1:Where is your factory located?
We are in Jinan city of China, 30 mins from Jinan Yaoqiang airport.
Q2:How can I get a sample to check your quality?
We can cut samples from your design and send to you.
Q3:How long can I expect to get the sample?
Genrally in 3-10 days after laser cutting.
Q4:Packaging & Shipping
Wood case and protection film.
4 sets 3015 Single table in 40 foot container.
Q5:What about the lead time for mass production?
Usually 30 days depends on fiber laser cutting machine type.
Q6:Does your product have warranty service? How long is the warranty period?
2-year warantry for fiber laser cutting machine.
Q7:How to provide technical support to customers?
We provide after sales service and technical training.We committed to provide customers a good purchasing experience.
Q8:How to become your overseas agent?
We are very glad to cooperate with you as our agent, we will provide more preferential policies.
