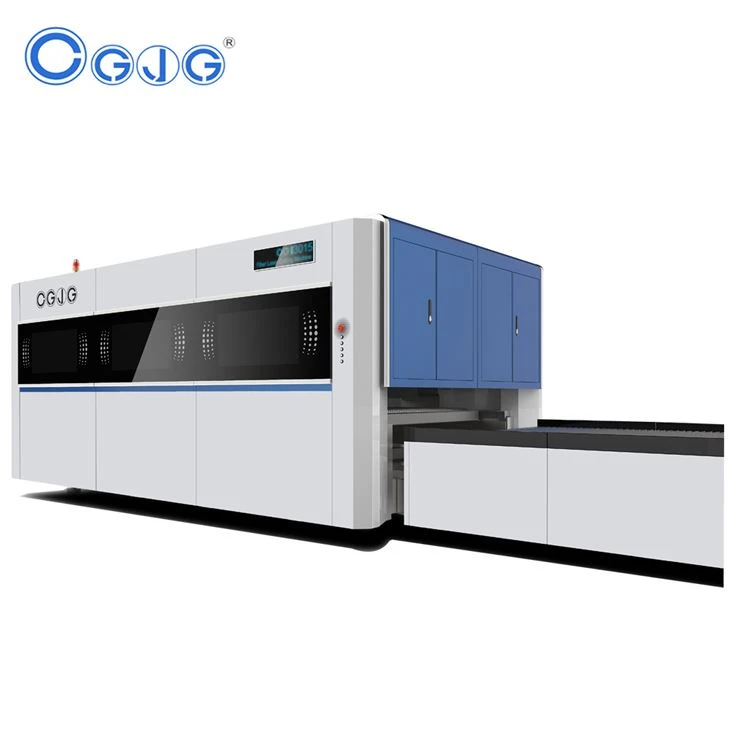

5mm Steel Metal Fiber Laser Cutting Machine CNC Sheet Plate
2 Cover Case, Eco-Friendly
3 Auto Adjusting Focal Length
4 Available for equipting high power laser source
5 Welded Machine Table that Made by Heaby Steel Plate
Send Inquiry
Product Details of5mm Steel Metal Fiber Laser Cutting Machine CNC Sheet Plate
Brief Introduction
Laser cutting macine that equips CypNest control system to control the cutting process, the main structure of this laser cutting machine is made by welded heavy steel plate that through heat treated. The machine also equips protection cover case and smoke exchausting equipment to protect the evironment and the health of machine operators. The control system of this machine is specially designed for laser cutting process. The machine equips exchange table therefore, the operators could collect the finished products and load the metal plate from the bakc side while the cutting process is happening in the front. The control system with the control panel could make the operator to set up the cutting process and the system also capable to read the multi-format of photo files to convert to the cutting process automatiacally.
Feature
1. Machine Body: Heat treated heavy steel pleat through welding process.
2. Laser Source: Suitable for several type of laser source such as IPG, Raycus, MAX, etc.
3. Life Time: Stable performence over 100,000 hours.
3. Cutting Material: Carbon steel, stainless steel, aluminum, copper.
4. Worktable: Exchange work table.
Technical Parameter:
Max.Linkage Speed | 100m/min |
Max. Acceleration | 1G |
Loading Capacity | 1000kg |
Overall Size | 4508*2255*1650mm |
Total Weight | 3500kg |
Z-axis Travel | 100mm |
Positioning Accuracy | ±0.05mm |
Repositioning Accuracy | ±0.03mm |
Laser Head | Raytools |
Laser Source | Raycus |
Laser Power Available | 1KW - 6KW |
Worktable Material | Welded Heat Treated Heavy Metal Plate |
Gantry Material | Aviation Grade Aluminum |
Servo Motor | Yaskawa |
Rails | HIWIN |
Rack | APEX |
Control system | CypCut |
Electrical Component | AVENTICS |
Assist Gas(O2 and N2) Control Valve | Japan SMC |
Machine Details:
Laser Cutting Head
Purchased directly from Raytools, auto focal length adjusting, build in double cooling
2. Machine Bed
Made by welded heavy steel plate that through heated
3. Moving Gantry
Aviation grade aluminum through casting process which is light weight with high strength
4. Laser Source
Suitable for several type of laser source such as Raycus, MAX, IPG, etc. The machine also available for high power laser source
5. Cooling System
Auto adjusting according to different working environment
Finished Product
