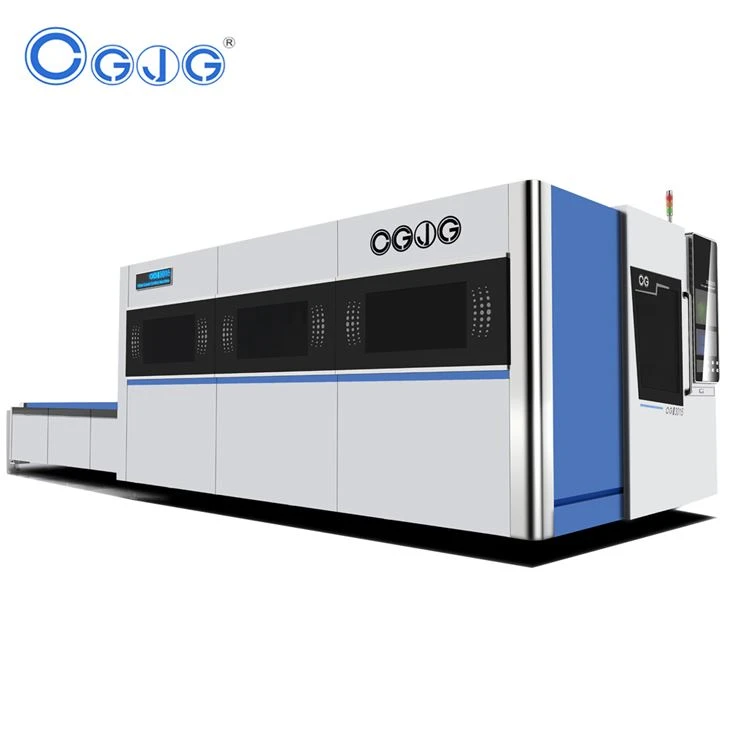

Enclosed Door For Metal 3015 Fiber Laser Cutting Machine
2 Protection Case and Smoke Exchaust Device
3 Automatic Focal Length Adjusting
4 Suitable Laser Power from 1KW to 6KW
5 Easy to Build up a Cutting Program
Send Inquiry
Product Details ofEnclosed Door For Metal 3015 Fiber Laser Cutting Machine
Brief Introduction
This laser cutting machine has protection case and exchange cutting format. The effective cutting area of this type of laser cutting machine is 3000mm * 1500mm, the worktable is made by welded heavy steel plate that through heat treated, which would provide a stable base during cutting process. There are CCD cameras to document the cutting process loading unloading and table exchanging process. To protect the environment and the health of the opterators, the machine equips smoke exchausting and processing device. The laser cutting machine CNC system adopts Cypcut control system, the operators could build up a cutting program through keyboard and mose; the laser cutting machine CNC system is also capable to read multiple format of photo file and convert it to the cutting program. The exchanging table of this laser cutting machine would make the loading, unloading and cutting process simultaneously.
Product Feature:
1. Worktable: Made by welded heavy steel plate
2. Available Laser Source: IPG/RAYCUS/MAX
3. Suitable Laser Power: 1KW to 6KW
3. Effective Cutting Area: 3000mm * 1500mm
4. Moving Gantry: Aviation grade aluminum through casting
5. Cutting Head: Raytools
6. Laser Cutting Machine CNC System: Cypcut
Technical Parameter:
Model | CGJG-3015 |
Working Area | 3048mm*1524mm |
Max.Linkage Speed | 100m/min |
Max. Acceleration | 1G |
Loading Capacity | 1000kg |
Overall Size | 4508*2255*1650mm |
Total Weight | 3500kg |
Z-axis Travel | 100mm |
Positioning Accuracy | ±0.05mm |
Repositioning Accuracy | ±0.03mm |
Laser Head | Raytools |
Laser Source | Raycus |
Laser Power Available | 1KW - 6KW |
Worktable Material | Welded Heat Treated Heavy Metal Plate |
Gantry Material | Aviation Grade Aluminum |
Servo Motor | Yaskawa |
Rails | HIWIN |
Rack | APEX |
Control system | CypCut |
Electrical Component | AVENTICS |
Assist Gas(O2 and N2) Control Valve | Japan SMC |
Machine Details:
1. Worktable
The laser cutting machine worktable is made by welded heavy steel plate, the plate has been through heat treated.

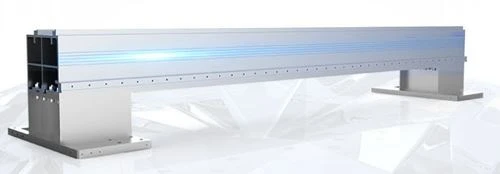

2. Moving Gantry
The moving gantry of this laser cutting machine is made by casted aluminum and the material adopts aviation grade aluminum; which reduce the weight and it improves the moving speed and also improves the cutting speed.
3. Laser Cutting Head
This laser cutting head is from Raytools with focal length auto adjusting

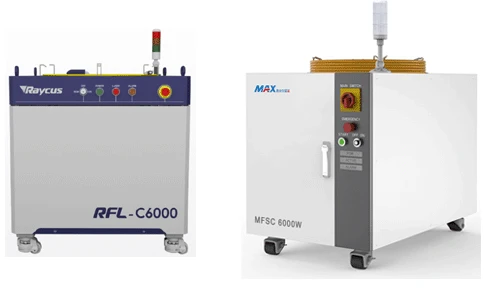

4. Laser Source
This laser cutting machine suitable for several type of laser source such as Raycus, MAX, IPG, etc. The most commenly used laser source in our laser cutting machine is from Raycus.
5. Cooling System
Lower the temperature for laser source, laser cutting head and other device that generated heat during the cutting process, it monitors the temperature and cool the device automaticlly.

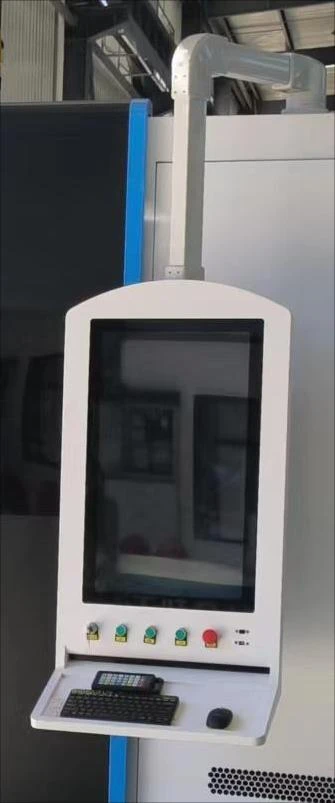

6. Control Station
This laser cutting machine CNC system is from Cypcuts, the operators could build up a cutting program through keyboard easily and the system also capable to read multiple format of photo files and convert to the cutting program.
Cutting Capacity
Finished Products
