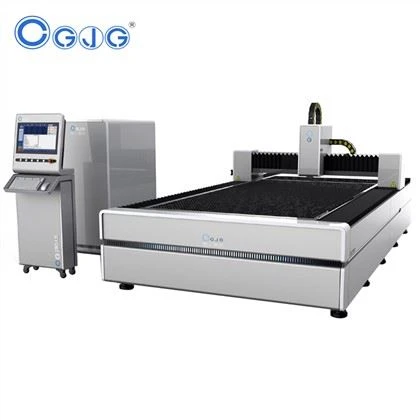

1kw/3kw/5kw Fiber Laser Cutting Machine
Send Inquiry
Product Details of1kw/3kw/5kw Fiber Laser Cutting Machine
Product Description
Automatic 1000W 1500W 3000W 1kw 2kw 3kw 3000mm*1500mm Fiber Laser Cutting Machine for Metal Cut Aluminium Alloy Sheet Plates and Pipes
| E series laser cutting machine | 3015H | |
| Power (W) | 1000W/1500W/2000W/3000W/6000W/8000W | |
| Rated sheet size(mm) | X | 1500 |
| Y | 3000 | |
| X/Y axis maximum positioning speed (m/min) | 80 | |
| Linkage maximum positioning speed (m/min) | 110 | |
| Maximum acceleration | 1.1G | |
| Positioning accuracy (mm/m) | 0.03 | |
| Repeat positioning accuracy (mm) | 0.01 | |
| Maximum load of worktable (kg) | 800 | |
| Operation terminal | Laser dedicated system and laser professional function handheld | |
| Wavelength | Fiber laser | |
Fiber laser cutting machine bed
1,The main machine part is composed of bed, moving beam, workbench, z-axis device,operation control part, air circuit, water circuit, etc.The X,Y and Z axis AC servo motorsare controlled by the system to drive the cutting head to realize stable, reliable andhigh-speed reciprocating motion.
2,The frame structure is welded by high-quality plates, and the machine bed is annealedat high temperature. Secondary aging treatment and precision machining of largegantry milling machine ensure that the machine tool has excellent seismic resistance,high rigidity and stability.
2,The frame structure is welded by high-quality plates, and the machine bed is annealedat high temperature. Secondary aging treatment and precision machining of largegantry milling machine ensure that the machine tool has excellent seismic resistance,high rigidity and stability.
Machine tool system
It adopts 3th-aviation-aluminum extrusion process structure. Formed by 4300 tonspress extrusion molding. After aging treatment, its strength can reach 6061 T6 whichis the strongest strength of all gantries. Aviation aluminum has many advantages, suchas good toughness, light weight, corrosion resistance, anti-oxidation, low density, andgreatly increase the processing speed.
Raytools Auto-focus Laser head
1.Modular design with easy maintenance.
2.Dual water cooling circuits.Collimator lens and focus lensboth have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of thecutting head.
3.Auto focus: The software automatically adjusts the focusing lens to realize automaticperforating and cutting plates of different thickness. The speed of
automatically adjusting focus lens is ten times of the manual adjusting.
1.Modular design with easy maintenance.
2.Dual water cooling circuits.Collimator lens and focus lensboth have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of thecutting head.
3.Auto focus: The software automatically adjusts the focusing lens to realize automaticperforating and cutting plates of different thickness. The speed of
automatically adjusting focus lens is ten times of the manual adjusting.
Yaskawa servo motor
The Japan Yaskawa servo motor is installed in all of the axes. With this motor, the machine can realize high-precision machining at high speed
Cypcut Control System
1,Cypcut sheet cutting software is an in-depth design
for fiber laser cutting industry. It simplifies complexCNC machine operation and integrates CAD,Nestand CAM modules in one.From drawing, nesting toworkpiece cutting all can be finished by a few clicks.Advantages: Auto Optimize lmported Drawing/Graphical Cutting Technique Setting/ Flexible Production Mode/Statistic ofProduction/Precise Edge Finding/ Dual-Drive Error Offset
2,lpad design screen
Has a vertical screen display, different from the traditional horizontal screen displaywith good response speed, higher contrast, wider view, low power consumption as wellas high resolution. In addition, it possesses high brightness levels and lower reflectivityas well as solid glass panel sturdiness and durability.
1,Cypcut sheet cutting software is an in-depth design
for fiber laser cutting industry. It simplifies complexCNC machine operation and integrates CAD,Nestand CAM modules in one.From drawing, nesting toworkpiece cutting all can be finished by a few clicks.Advantages: Auto Optimize lmported Drawing/Graphical Cutting Technique Setting/ Flexible Production Mode/Statistic ofProduction/Precise Edge Finding/ Dual-Drive Error Offset
2,lpad design screen
Has a vertical screen display, different from the traditional horizontal screen displaywith good response speed, higher contrast, wider view, low power consumption as wellas high resolution. In addition, it possesses high brightness levels and lower reflectivityas well as solid glass panel sturdiness and durability.
