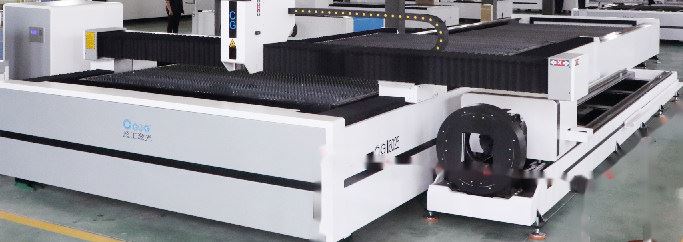

Raycus 3015 Cnc Fiber Laser Metal Cutting Machine

Product Introduction:

CYPCUT control system controls the X,Y,Z axis motion,which can drive the fiber laser cutting head to achieve stable,accurate and high-speed motion. The imported high-quality precision gear rack and other precision positioning parts ensure the transmission accuracy.

Technical Parameters:

Product Details

Fiber Laser Cutting Machine Configuration: standard suitable for 2000W 3000W

Laser Source: MAX/RAYCUS 2000W/3000W

Cutting Head: Raytools auto focus cutting head BM111

Control System: CYPCUT controller FS2000

Servo motor: Japan Yaskawa Y: 1300W Y:1300W X: 850W Z:400W

Dual-temperature: S&A/Hanli cooling system;

Guide rail : PMI guide rail

Rack: APEX /YYC rack

Machine bed: Heat treated heavy sheet welding machine bed;

Gantry : Aluminium gantry

Reducer: MOTOVARIO reducer

Automatic lubrication system

Computer: Industry computer

Key Parts:

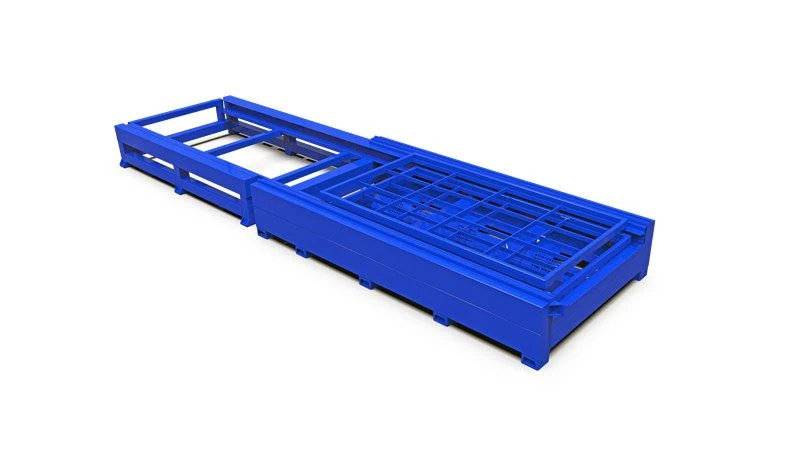

Working Platform:

It adopts an up and down exchange platform;the converter is responsible for controlling the exchange motor;the machine is able to finish the platform exchange within 15S.

Aviation Aluminum Gantry:

Compared with the previous products,the weight of the new generation aviation aluminum gantry is reduced by half. At the same time, it has the advantages of good toughness,high light weight and high processing speed.

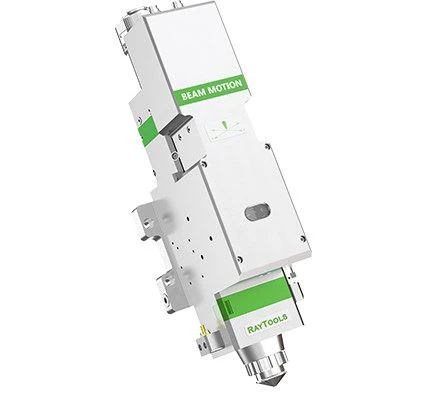

Cutting Head:

Adjustable height,high sensitivity, real time detection of temperature ,Active anti-collision design and long service life.

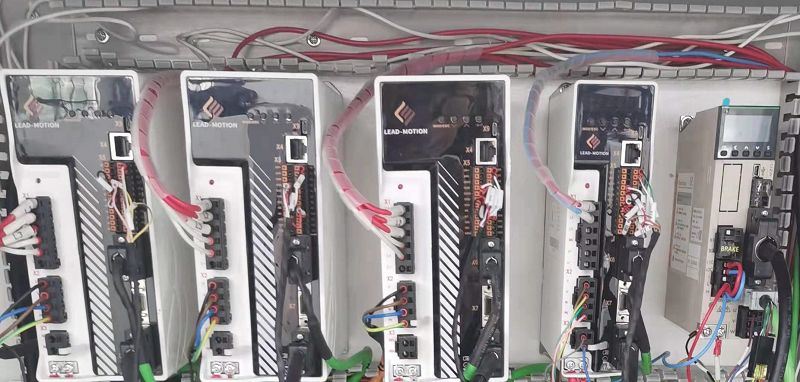

Servo Driver and Motor-YASKAWA:

Adopt Japan YASKAWA motor ,no adjustment function,real-time use,automatic tuning function,excellent performance.

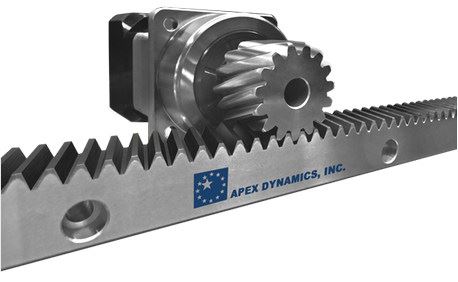

Gear and Rack-Taiwan Apex:

High precision

-Strong load bearing

-High speed

-Low noise

-Long service life

Independent cabinet

New designed console

-HD display

-Removable

Independent cabinet and interface display:

All electrical components in the independent control cabinet with dust-proof design. Air condition is built-in to the independent control cabinet with automatic constant temperature, which can avoid high temperature damage the electrical components.

HD display is convenient to operate with low power consumption,high resolution and brightness,fast response and simple interface operation.

Cutting Material and Range

For cutting a variety of materials, mainly used in carbon steel, stainless steel, a variety of aluminum alloys, brass, copper, aluminum, pickling board, galvanized plate, silicon wafers, electrolytic plates, titanium alloys, manganese alloys, a variety of alloy plates, rare metals and other metal materials of two-dimensional flat cutting.

Cutting Range：

Carbon Steel: 0.5-16mm

Stainless Steel: 0.5-5mm

Aluminum alloy:0.5-5mm

Brass: 0.5-3mm

Cutting Samples

Application Area

Widely used in household appliance, sheet metal chassis frame, hardware, advertising signs, auto parts, display equipment, various metal products, sheet metal cutting and processing industries.
