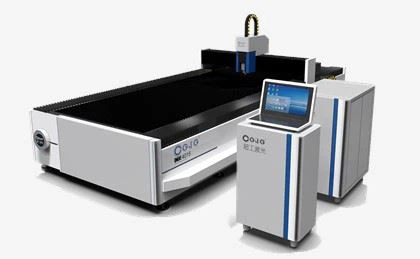

CGJG Laser is a Professional laser equipment manufacturer.3015H Series open type fiber laser cutting machine is designed for high precision sheet metal processing. Used for cutting various metals stainless steel carbon steel brass.Elegant appearance and easy operation deeply welcomed by customers.Laser Source IPG/RAYCUS/MAX choose,fiber laser power 1KW to 6KW choose,ensure a big cutting ability,stable performance and lifespan is over 100,000 hours. CGJG fiber laser cutting machine is equipped with Japanese Yaskawa motor, French Motoreducer and Taiwan APEX rack. The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1G. The working life is up to 10 years.

Product Feature:

1.Carbon Steel Welded Stronger Bed.

2.Value and Accessibility.

3.High Speed High Efficiency.

4.1KW-6KW IPG/RAYCUS/MAX Laser Source.

5.Single Work Table Open Design.

6.Elegant Simple Design Sheet Metal.

7.Independent Control Cabinet.

8.Aviation Aluminum Gantry.

Technical Parameter:

Fiber Laser Cutting Machine Configuration: standard suitable for 1000W 1500W

Laser Source: MAX/RAYCUS 1000W/1500W

Cutting Head: Raytools auto focus cutting head BM110

Control System: CYPCUT controller FS2000

Servo motor: Japan Yaskawa Y: 850W Y:850W X: 850W Z:400W

Dual-temperature: S&A/Hanli cooling system;

Guide rail : PMI guide rail

Rack: APEX /YYC rack

Machine bed: Heat treated heavy sheet welding machine bed;

Gantry : Aluminium gantry

Reducer: MOTOVARIO reducer

Automatic lubrication system

Computer: Industry computer

Function parameter List			3015H	4015H
Item	Subitem		3015H	4015H
Basic parameter	Working area		3048mm*1524mm	4000mm*1524mm
Basic parameter	Max.linkage speed		100m/min	100m/min
Performance	Max. acceleration		1G	1G
	Table load bearing		1000kg	1200kg
	Machine size		450822551650mm	550022551650mm
	Machine weight		3500kg	4000kg
	Z axis travel		100mm	100mm
	Positioning accuracy		±0.05mm	±0.05mm
	Repositioning accuracy		±0.03mm	±0.03mm
	Φ30mm roundness		≤0.15mm	≤0.15mm
	□30mm adjacent side dimension		≤0.06mm	≤0.06mm
Configuration	Optical system	laser head	WSX/Raytools/Precitec	WSX/Raytools/Precitec
	Optical system	Laser source	MAX/Raycus/IPG	MAX/Raycus/IPG
	mechanical system	Machine bed	Plate welded bed	Plate welded bed
		Gantry structure	Aviation Aluminum Beam	Aviation Aluminum Beam
		X/Y/Z-axis Servo	Yaskawa	Yaskawa
		Linear Rails	HIWIN/PMI	HIWIN/PMI
		Rack	APEX	APEX
	Electrical system	Control system	CypCut	CypCut
		Display size	21.5 inches	21.5 inches
		Breaker	France Schneider	France Schneider
		Relay	Schneider/ ABB	Schneider/ABB
		Electrical proportional valve	Japan SMC/Germany AVENTICS	Japan SMC/Germany AVENTICS
		O₂ gas control valve	Japan SMC	Japan SMC
		N₂ gas control valve	Japan SMC	Japan SMC

Machine Details:

Machine bed is welded with 12-16mm thick carbon structural steel dislocation honeycomb structure, machined after stress relief and annealing, then vibration-aging and natural aging treatment, so that the welding and machining stress can be completely eliminated, to ensure excellent rigidity and high precision of the bed, reducing the machining error caused by the vibration of the bed.

The automatic oil lubrication system, automatically lubricates the guide rail, slider, rack and gear. It can be set by the time and travelled distance. All running parts with oil, prolong their working life, effectively prolongs the life of the machine and reduces wear.

3015 size 1mm thick cnc fiber laser cutting machine

Japan Yasukawa Servo System

For motion along all axes, the machine kit includes industrial servo motor Yaskawa (Japan), its accuracy and reliability ensure uninterrupted operation and consistent high quality products.

Fiber Laser Cutting Head

You can optionally match the Raytools laser head, the independent height controller BCS100, can handle unlatten surface, built-in water cooling system, ensuring that the laser head is stable. Laser head with autofocus system.

Water chiller

Using the famous domestic intelligent chiller brand, through the deionization system, you can understand the water pressure and water quality in real time, and equipped with an alarm system to ensure the timeliness of maintenance and greatly improve the service life of the laser.

Raycus Laser Source

Fiber laser is compact in structure, stable in performance and widely used, Fiber laser has high photoelectric conversion
efficiency, good beam quality and low maintenance cost,(The USA IPG Laser source is optional)

Industry Applications:

F3015 fiber laser cutting machine as one classic model, widely used in many common areas of our life, such as processing of stainless steel kitchenware, storage cabinet and other cabinets, is closely related to people's daily life.

Used for cutting a variety of metal plates, pipes (add pipe cutting device), mainly used in stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum, various alloy plate, rare metal and other metal materials.

Cutting Capacity

Material

Carbon steel(O2)

Thickness(mm)

500w

Cutting speed
(m/min)

7.0~8.0

4.0~5.0

2.0~2.5

1.5~20

12~1.5

1.0~1.4

1000w

7.0~9.0

5.0-6.0

2.5~3.0

2.0~2.4

15~1.8

1.4~1.6

1.0~12

0.7~0.85

0.6~0.7

1500w

7.0~11.0

5.0-6.5

28~3.8

2.5~3.2

1.8~25

1.6~2.2

1.1~1.5

1.0~1.2

0.9~1.0

2000w

7.0~120

5.0-6.5

3.0~4.6

2.8-4.0

2.2~3.2

2.0~2.8

1.4~2.0

1.1~1.4

0.9~1.2

0.6~0.75

3000w

7.0~12.0

5.0~7.0

3.5~5.0

3.0~4.2

2.5~3.6

2.4~3.0

1.8~2.4

1.2~1.8

1.0~1.5

0.7~0.85

0.6~0.75

0.5-0.65

0.4~0.6

4000w

7.0~12.0

5.0~7.0

3.5~5.0

3.0~4.2

2.5~3.6

2.4~3.0

1.8~2.4

1.2~1.8

1.0~1.5

0.7~0.85

0.6~0.75

0.5-0.65

0.4~0.6

6000w

7.0~12.0

5.0~7.0

3.5~5.0

3.0~4.2

2.5~3.6

2.4~3.0

1.8~2.4

1.2~1.8

1.0~1.5

0.7~0.85

0.6~0.75

0.5-0.65

0.4~0.6

8000w

7.0~12.0

5.0~7.0

3.5~5.0

3.0~4.2

2.5~3.6

2.4~3.0

1.8~2.4

1.2~1.8

1.0~1.5

0.7~0.85

0.6~0.75

0.5-0.65

0.4~0.6

10000w

7.0~12.0

5.0~7.0

3.5~5.0

3.0~4.2

2.5~3.6

2.4~3.0

1.8~2.4

1.2~1.8

1.0~1.5

0.7~0.85

0.6~0.75

0.5-0.65

0.4~0.6

12000w

7.0~12.0

5.0~7.0

3.5~5.0

3.0~4.2

2.5~3.6

2.4~3.0

1.8~2.4

1.2~1.8

1.0~1.5

0.7~0.85

0.6~0.75

0.5-0.65

0.4~0.6

Material

Stainless steel(N2)

Thickness(mm)

500w

Cutting speed
(m/min)

10~12

2~4.0

0.7~2.0

1000w

15~18

4.5~6.0

2.0~2.4

1.0~1.5

0.7~0.85

1500w

10~15

5.0~7.0

3.0~4.0

2.0~2.8

1.2~1.7

0.7~1.0

0.5~0.7

2000w

35~50

10~15

5.0~7.0

3. 5~4.5

1.8~2.5

0.7~0.8

0.5~0.6

3000w

45~55

15~23

7.0~11.0

4.0~-6.0

2.5~4.0

2.0~3.2

1.2~1.8

0.7~0.9

0.3~0.4

4000w

45~55

18~27

10~15

5.0~7.5

4.0~5.0

3.0~4.0

1.5~2.6

0.7~1.3

0.4~0.6

0.3~0.5

6000w

45~55

20~35

15~20

10~14

8.0~12.0

6.0~8.0

3.5~4.0

1.8~2.2

1.2~1.5

0.8~1.2

0.6~0.8

0.3~0.4

8000w

45~55

23~37

19~24

14~17

11~14

8.0~9.5

5.0~5.5

2.5~3.0

1.8~2.1

1.5~1.8

1.0~1.3

0.6~0.75

0.3~0.5

10000w

45~55

26~40

23~28

18~22

14~17

9.5~11.0

6.5~7.0

3.4~3.9

2.6~3.1

2.2~2.5

1.7~2.0

1.0~1.2

0.4~0.6

12000w

45~55

28~43

27~32

22~26

16~18

10.5~12

7.5~8.0

4.0~4.5

3.3~3.6

2.7~3.0

2.2~2.5

1.4~1.6

0.6~0.8

Honor Certificate:

FAQ:

Q1:Where is your factory located?

We are in Jinan city of China, 30 mins from Jinan Yaoqiang airport.

Q2:How can I get a sample to check your quality?

We can cut samples from your design and send to you.

Q3:How long can I expect to get the sample?

Genrally in 3-10 days after laser cutting.

Q4:Packaging & Shipping

Wood case and protection film.

4 sets 3015 Single table in 40 foot container.

Q5:What about the lead time for mass production?

Usually 30 days depends on fiber laser cutting machine type.

Q6:Does your product have warranty service? How long is the warranty period?

2-year warantry for fiber laser cutting machine.

Q7:How to provide technical support to customers?

We provide after sales service and technical training.We committed to provide customers a good purchasing experience.

Q8:How to become your overseas agent?

We are very glad to cooperate with you as our agent, we will provide more preferential policies.
