CG LASER 1530C CNC Laser Cutter 1000W 2000W 3000W

Product Introduction:

With a fully enclosed design, the observation window adopts an European CE Standard laser protective glass；Enhanced-partition Dust Removal makes the smoke generated by cutting can be filtered inside,which is pollution-free and environment-friendly;Real time detection of laser cutting head temperature;Lighting piercing,high speed cutting ;Abnormal intelligent alarm;Intelligent maintenance reminder.

Technical Parameters:

Fiber Laser Cutting Machine Configuration: standard suitable for 2000W 3000W

Laser Source: MAX/RAYCUS 2000W/3000W

Cutting Head: Raytools auto focus cutting head BM111

Control System: CYPCUT controller FS2000

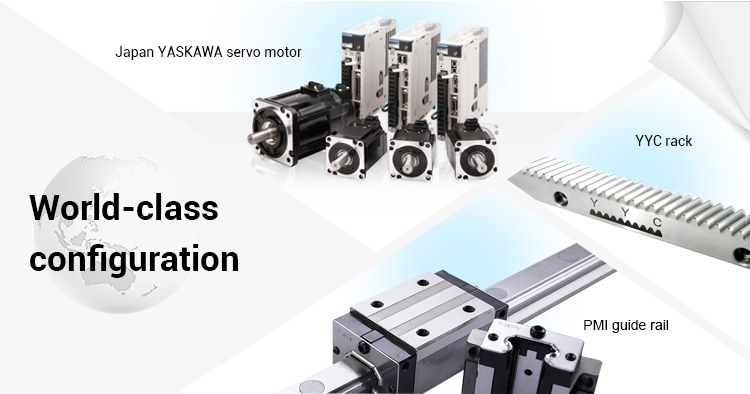

Servo motor: Japan Yaskawa Y: 1300W Y:1300W X: 850W Z:400W

Dual-temperature: S&A/Hanli cooling system;

Guide rail : PMI guide rail

Rack: APEX /YYC rack

Machine bed: Heat treated heavy sheet welding machine bed;

Gantry : Aluminium gantry

Reducer: MOTOVARIO reducer

Automatic lubrication system

Computer: Industry computer

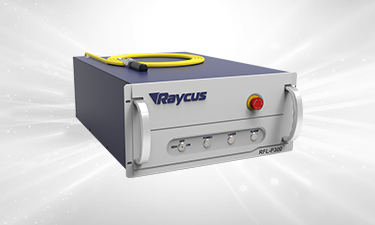

Raycus Laser Source

100,000 hours of lifetime and free maintenance

High electro-optical conversion rate(up to 40%) and excellent beam quality.

Low electricity consumption greatly saves your costs

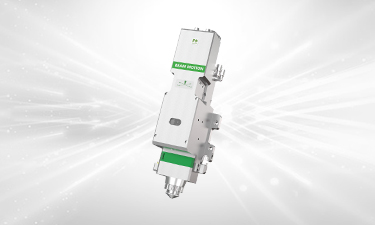

Laser Head

An Intelligent cutting head brings the highest quality and productivity, cutting speed increased by up to 25%. Built-in sensors facilitate regular maintenance and effective usage of spare parts.

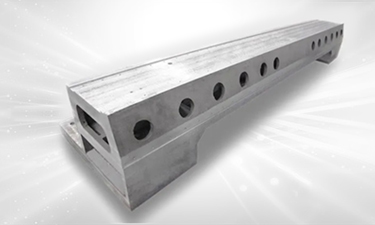

Ultra-high Tensile Aluminum Crossbeam

High-grade aviation aluminum crossbeam processed by 10,000 tons of extrusion production technology;

Excellent mechanical properties with weight reduced by 20% and rigidity increased by 60%;

High temperature resistance improves running stability;

Lightest weight, highest responsiveness and highest accuracy.

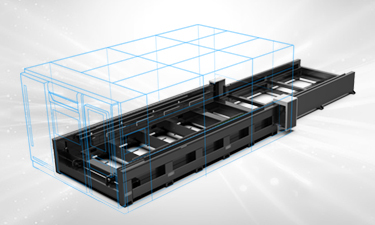

Heavy-duty Plate Welding Bed

Strengthened burn-proof manganese steel sheet welding;

Upgraded segmented dust and smoke extraction structure;

High-temperature annealing, vibration aging and natural aging.

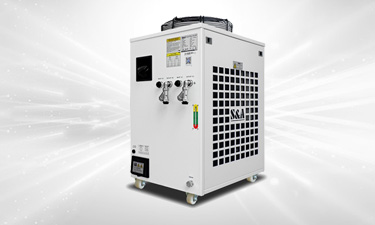

S&A Industrial Water Chiller

Automatically adjust the temperature according to different working environment, no need to change settings parameters

Intelligent dual temperature dual control mode provides effective temperature control solutions for fiber lasers in all directions

Multiple alarm protection guarantees safe and continuous production

CE, RoHS, REACH certifications

 Cypcut Software

Software Operating System, compatible with a variety of CAD, DXF, AI, IGS drawing formats, intelligent discharging and saves costs, automatic cutting path matching saves processing time.

Cutting Material and Range

Able to cut carbon steel, stainless steel, silicon steel ,galvanized steel, electrolytic plate and other metal materials.

Cutting thickness Range：

1~40MM

Cutting Samples

Application Area:

Suitable for cutting stainless steel,carbon steel,silicon steel,galvanized sheet,electrolytic sheet,aluminum alloy,titanium alloy and other metals.
