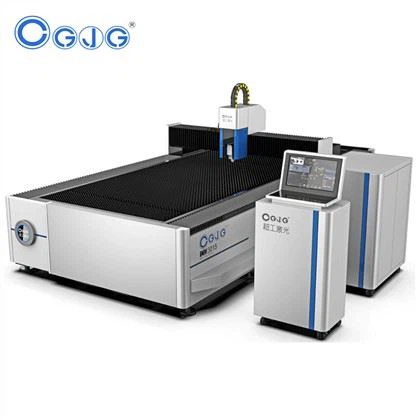

Cnc Cutters Laser Lazer Cutting Machine 1000w

Product Introduction:

The laser cutting machine focuses the laser emitted from the laser into a laser beam with high power density through the optical path system. The laser beam irradiates the surface of the workpiece to make the workpiece reach the melting point or boiling point. At the same time, the high-pressure gas coaxial with the beam blows away the molten or gasified metal.

Technical Parameters:

Fiber Laser Cutting Machine Configuration: standard suitable for 2000W 3000W

Laser Source: MAX/RAYCUS 2000W/3000W

Cutting Head: Raytools auto focus cutting head BM111

Control System: CYPCUT controller FS2000

Servo motor: Japan Yaskawa Y: 1300W Y:1300W X: 850W Z:400W

Dual-temperature: S&A/Hanli cooling system;

Guide rail : PMI guide rail

Rack: APEX /YYC rack

Machine bed: Heat treated heavy sheet welding machine bed;

Gantry : Aluminium gantry

Reducer: MOTOVARIO reducer

Automatic lubrication system

Computer: Industry computer

Key Parts:

Aviation Aluminum Gantry:

Exclusive technology machine body, stiffeners are arranged inside the tubes to increase the strength and service life

Compared with the previous products, the new generation has the advantages as following:

Half weight less than previous

Fast speed of cutting

Good toughness

Segmented Rectangular Welded Bed:

The machine is equipped with automatic lubrication device, the cutting area is equipped with partition dust removal device, and the bottom of the cutting area is equipped with garbage truck, which can extract and clean garbage regularly.

Cutting Head:

Optimized optical configuration and smooth and efficient airflow design ensure high precision and strong stability, large adjustment range and long service life.

Auto focus possible

The focal length is controlled by the operating system. We do not need to adjust it manually, which effectively avoids errors or faults caused by manual operation

The optimized optical configuration and smooth and efficient air flow design ensure high precision, strong stability, large focusing range and long service life

Transmission and Precision:

CG Fiber laser cutting machine is equipped with Japan YASKAWA Servo Motor, France MOTOVARIO reducer. It makes sure that the machine positioning accuracy is ±0.02mm,and the cutting acceleration is 1.0G. The service life is more than 10 years.

Servo Driver and Motor-YASKAWA:

Adopt Japan YASKAWA motor with excellent performance，high accuracy and long service life

Laser Source:

Cutting Material and Sample:

Specially for stainless steel, carbon steel, galvanized plate, many kinds of alloy, etc. If you want to cut high reflection metal materials, such as brass, copper, aluminum etc. We can customize the metal cutting machine according to your demands.

Application Area

Application Industries:Fiber Laser Cutting Machines are widely used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts, Nameplates, etc
