Steel Metal Fiber Laser Cutting Machine

Product Introduction:

Adopt the imported excellent performance fiber laser source with small laser spot and high efficiency & speed for good cutting quality with small deformation and smooth beautiful appearance, service life of which up to 100000H.

Technical Parameters:

Key Parts:

Aviation Aluminum Gantry:

The new generation of gantry frame adopts aerospace standard and is made of high-strength aluminum alloy. After heat treatment, the overall strength , stiffness and stability of the beam are ensured.

Segmented Rectangular Welded Bed:

The internal structure of the bed adopts aircraft metal honeycomb structure, which is welded by multiple rectangular tubes. Stiffeners are arrange inside the tubes to increase the strength and tensile strength of the bed, the resistance and stability of the guide rail, to effectively avoid the deformation of the bed. High strength, stability, tensile strength, ensure the use of 20 years without deformation; The wall thickness of rectangular pipe is 10mm.

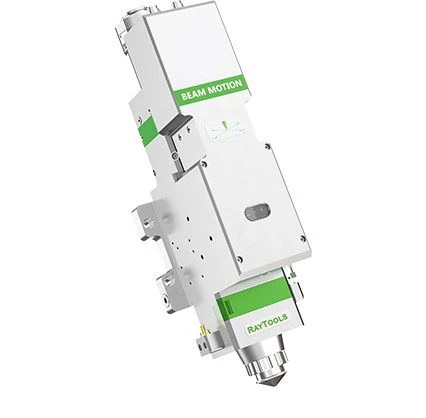

Cutting Head:

High adjustment precision and range : range+10mm~-12mm, accuracy ≤50μm, suitable for different types and thickness of metal plates.

- Fast Perforation and Automatic Cutting

- Optimized optical and water-cooling design enables the laser head to operate continuously and stably for a long time at high power.

Transmission and Precision:

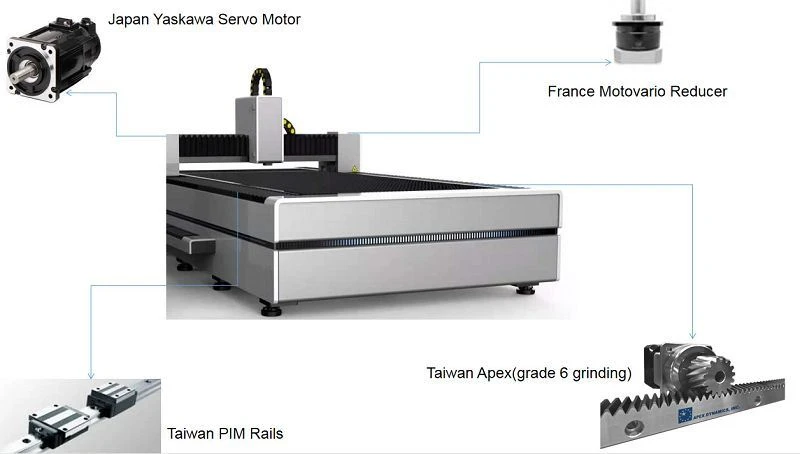

CG Fiber laser cutting machine is equipped with Japan YASKAWA Servo Motor, France MOTOVARIO reducer. It makes sure that the machine positioning accuracy is ±0.02mm,and the cutting acceleration is 1.0G. The service life is more than 10 years.

Servo Driver and Motor-YASKAWA:

Adopt Japan YASKAWA motor with excellent performance，high accuracy and long service life

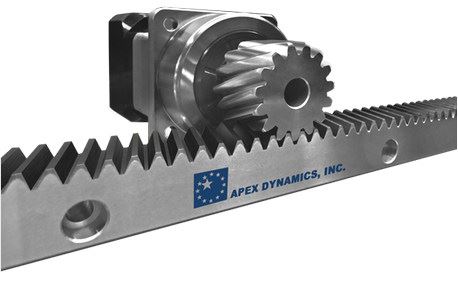

Gear and Rack-Taiwan Apex:

-High precision

-Strong load bearing

-High speed

-Low noise

-Long service life

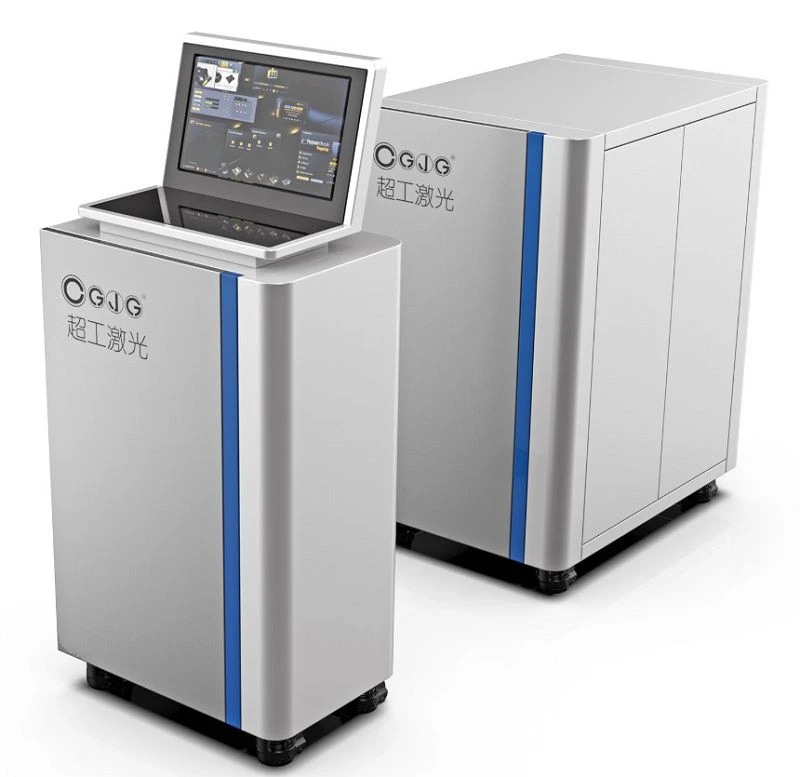

Independent cabinet

New designed console

-HD display

-Removable

Independent cabinet and interface display:

All electrical components in the independent control cabinet with dust-proof design. Air condition is built-in to the independent control cabinet with automatic constant temperature, which can avoid high temperature damage the electrical components.

HD display is convenient to operate with low power consumption,high resolution and brightness,fast response and simple interface operation.

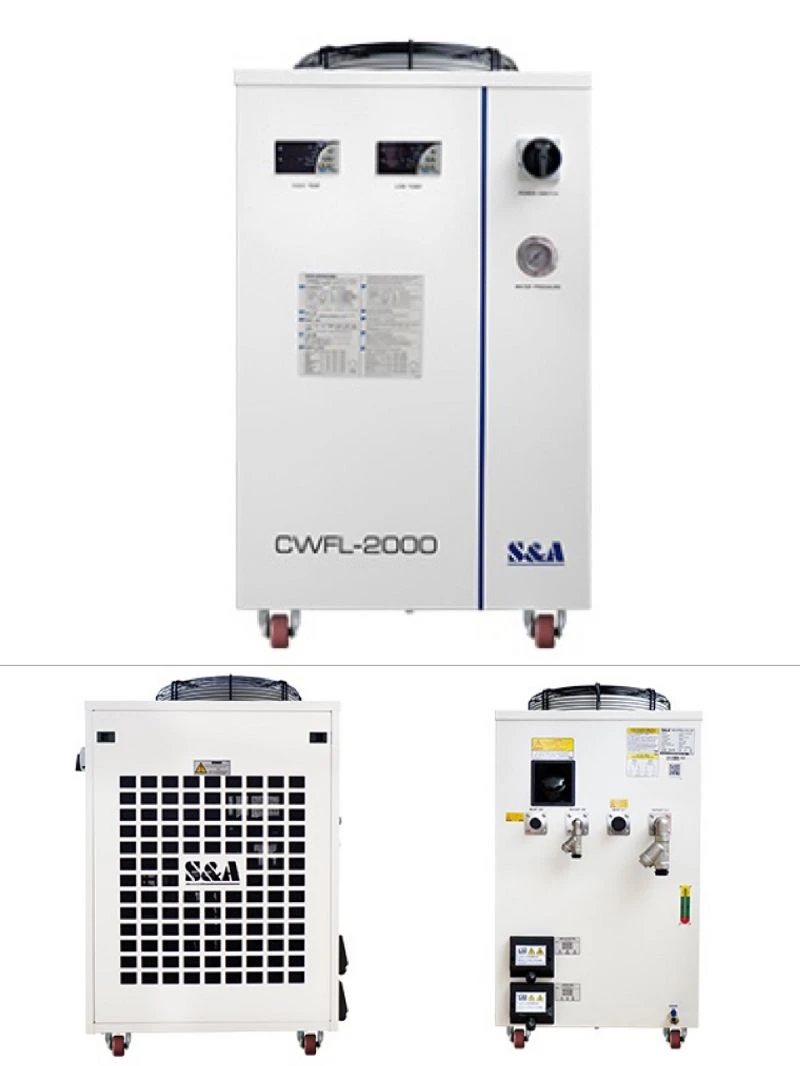

Water Chiller--S&A :

Dual cooling function,real time alarm,machine protection,can switch to intelligent temperature control mode.

Cutting Material and Range

For cutting a variety of materials, mainly used in carbon steel, stainless steel, a variety of aluminum alloys, brass, copper, aluminum, pickling board, galvanized plate, silicon wafers, electrolytic plates, titanium alloys, manganese alloys, a variety of alloy plates, rare metals and other metal materials of two-dimensional flat cutting.

Cutting Range：

Carbon Steel: 0.5-16mm

Stainless Steel: 0.5-5mm

Aluminum alloy:0.5-5mm

Brass: 0.5-3mm

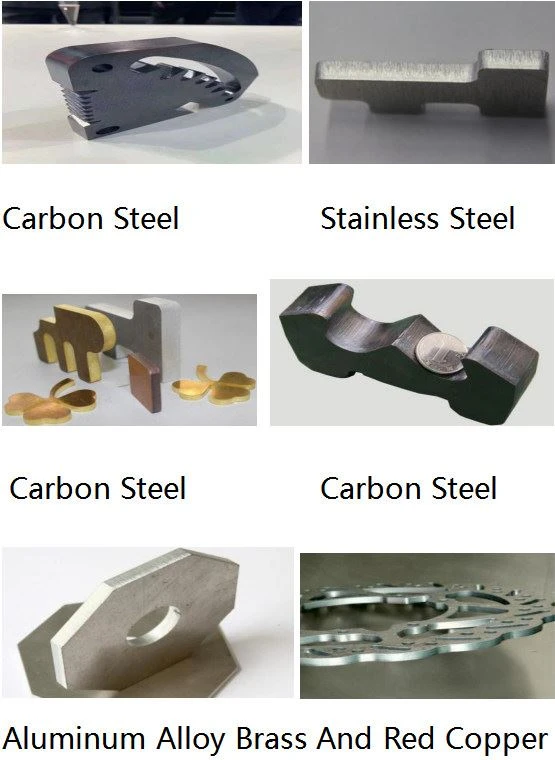

Cutting Samples

Application Area

Widely used in household appliance, sheet metal chassis frame, hardware, advertising signs, auto parts, display equipment, various metal products, sheet metal cutting and processing industries.
