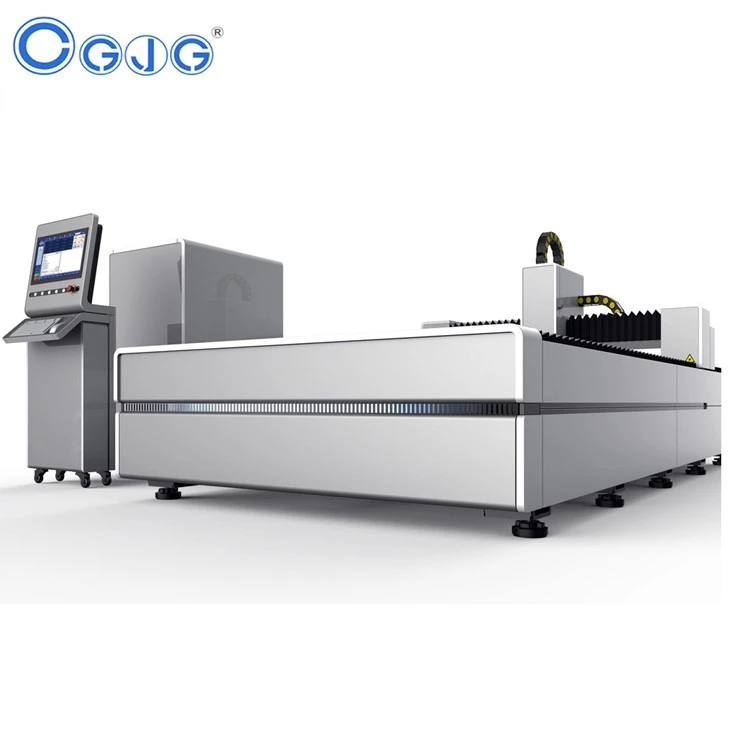

Laser Plate Cutting Machine
JINAN CGJG LASER EQUIPMENT CO., LTD (CGJG Laser) focuses on the R&D, manufacturing and sales of high-power laser processing equipment, including high-power laser cutting machine, laser welding machine and multi-functional laser processing equipment, to provide customers with personalized and professional laser processing system solutions. The main products of super laser cover the full power series of optical fiber laser cutting series, laser marking series, laser processing special equipment and cutting complete equipment, etc.
Our laser processing equipment are widely used in iron and steel metallurgy, non-ferrous metals, automobile and parts, aerospace, military electronics, precision instruments and meters, machinery manufacturing, hardware tools, integrated circuits, solar energy and other industries.
Our production base covers an area of 40,000 square meters, with dozens of high-precision imported CNC machining centers and large-scale gantry milling machines. We have a comprehensive grasp of core technologies such as precision manufacturing of chucks, software cutting technology, and numerical control systems to ensure the stability and production efficiency of the equipment.
We have obtained more than 20 product and technology patents, and more than 30 new patent applications in 2021. The company has passed ISO9001 quality system certification, and its products have obtained EU CE and US FDA certifications. We have a number of scientific research results.
We have set up a dedicated customer service team to provide customer service 24 hours a day, including pre-sales service, in-sale service, after-sales service, customer training, etc., from technical process consultation, incoming proofing reception, installation and commissioning, and free customers in terms of personnel induction training, equipment maintenance and repair, etc.
Laser plate cutting machines feature high-powered and highly accurate laser beams that are designed to produce precision cuts and clean etches on a wide gamut of materials. These machines are usually used to cut materials in industrial manufacturing applications such as structural and piping materials along with metal plates. The laser beams on laser cutting machines are responsible for burning, vaporization, or melting excess material, resulting in precision-quality cuts.
How a Laser Plate Cutting Machine Works
In laser cutting, a part is placed onto a bed, where material is then etched or cut from a sheet using a laser. Here is a simple overview of the laser cutting process:
Power is adjusted based on the material being cut and the thickness of the sheet. A typical laser beam has a diameter of 0.1 - 0.3mm (power of 2-3kW.)
A CAD drawing is converted into a series of commands that can be interpreted by the laser cutting machine. This is usually done by the machine operator based on its standard working procedure.
A sheet of material is then cut to size, placed on the machine's bed workpiece is clamped onto the bench, making sure that the orientation is straight (not slanted).
The material is now cut or scored by the laser. The light is emitted from a resonator; this is an airtight glass tube composed of two facing mirrors and filled with diode activated gases. It's then emitted from the cutting head, where light from the resonator is focussed onto a curved lens, where it is focused into a single beam).
Multiple parts can be cut from the same sheet and will run on the same program.
The Main Advantages of Laser Plate Cutting Machine
Good Cutting Quality
The slit width is narrow (typically 0.1-0.5mm), high precision (general hole center distance error 0.1-0.4mm, contour size error 0.1~0.5mm), the surface roughness of the slit is good (general Ria is 12.5~25μm). And the slits are generally welded without secondary processing.
Cutting Speed is Fast
For example, the cutting speed of carbon steel with 2kw laser power, a thickness of 8mm is 1.6m/min; the cutting speed of stainless steel with a thickness of 2mm is 3.5m/min, and the deformation is extremely small.
Clean, Safe and Non-polluting, Greatly Improving the Working Environment of the Operators
Laser cutting is a non-contact optical thermal processing, known as the "universal tool that never wears out. "The workpiece can be tightly nested or nested in any form to make full use of the raw materials. Moreover, due to the non-contact processing, the distortion of the machined parts is minimized and the amount of wear is reduced.
Comparison of Laser Cutting and Punching
Previously, the sheet metal processing industry used traditional punching machines for stamping and later developed into CNC turret punch presses and composite machine tools. With the advancement of society, laser cutting technology has also been introduced into the metal processing industry, and it has become an advanced processing method for industrial plate cutting.
The Benefits of Using Laser Plate Cutting Machine
The Benefits of Using Laser Plate Cutting Machine
laser plate cutting machines offer unmatched precision and accuracy when it comes to cutting and shaping different types of metals. With the use of advanced laser technology and advanced control systems, fiber lasers can cut complex shapes, intricate patterns, and fine details with great ease.
Speed
Compared to traditional cutting methods, fiber laser plate cutting machines are much faster and more efficient. They can cut through a variety of metals at lightning-fast speeds, reducing production time and costs significantly.
Flexibility
Fiber laser plate cutting machines are highly versatile and can cut through a range of materials including steel, aluminum, brass, copper, and titanium. They can also handle various thicknesses of material with ease.
Low Maintenance
Fiber laser plate cutting machines are designed to be low-maintenance, with fewer parts that require regular maintenance or replacement. They are also less prone to breakdowns or malfunctions compared to other traditional cutting methods.
Energy Efficient
Fiber laser plate cutting machines consume less energy than other types of laser cutters. They also require less power to operate, which reduces operating costs significantly.
Compact Design
Fiber laser plate cutting machines are designed to be compact and take up minimal workshop floor space. Their small footprint allows for better use of available workspace and efficient production flow.
Components of Laser Plate Cutting Machine
Laser Generator
The laser generator is the heart of the laser-cutting machine. It generates the laser beam used for cutting and carving materials. Generators use laser media (such as gas mixtures or crystals) that are excited to higher energy states. When the laser medium returns to its normal state, it will emit photons and generate a laser beam. The quality of the laser beam (its power and focus) mainly relies on the design and quality of the generator.
Cutting Head
The cutting head is the place where the laser beam is emitted from the machine and interacts with the materials to be cut. It contains a focusing lens that can concentrate the beam to the point onto a small point on the surface of the material. The strong energy produced by the focusing laser beam makes the material evaporate, thus forming a notch. The cutting head usually is equipped with a height follower system that maintains a constant and optimal distance between the cutting head and the material.
CNC Controller
The CNC controller is the brain of the laser-cutting machine. It explains CAD (computer assistant design) data and transforms it into accurate mechanical movement. This makes laser-cutting machine cut and engraves complex shapes precisely. The CNC controller also manages other machine parameters, such as power output, cutting speed, and auxiliary gas flow rate.
Assist Gas System
Assist gas system plays an important role in laser cutting process. It transports airflow (usually oxygen, nitrogen, or compressed air) at the cutting point. Assist gas is beneficial to blow away melted materials, cool the cutting area and impacts the quality of cutting edge. The choice of assist gas and its pressure depends on the type of materials being cut.
Material thickness and type
Consider the thickness and type of material that needs to be cut. Some laser plate cutting machines can only handle thin materials, while others can cut thicker materials up to 30mm or more. Also, some machines are better suited for cutting certain types of materials, such as metals or plastics.
Laser power
The power of the laser is an important factor in determining the speed and precision of the cutting process. Generally, the higher the wattage of the laser, the faster it can cut through materials.
Cutting speed
The cutting speed of the machine should also be considered. Faster cutting speeds can significantly improve production rates, but may come at a higher cost.
Bed size and capacity
The bed size and capacity of the machine will determine the maximum size and weight of the materials that can be cut. It is essential to choose a machine with a bed size that can accommodate the size of the materials you need to cut.
Accuracy and precision
The accuracy and precision of the machine are also crucial factors to consider. The machine should be able to cut intricate designs with precision and accuracy without creating any distortions or rough edges on the final product.
Ease of use
Choose a machine that is user-friendly and easy to operate. The software should be intuitive and easy to navigate. The cutting process should also be easy to set up, quick, and efficient.
Maintenance and support
Consider the maintenance requirements of the machine and the level of support provided by the manufacturer. Ensure that there is a reliable service team that can quickly address any issues that may arise.
How to Use Laser Plate Cutting Machine
Step 1: Safety precautions
Make sure you wear appropriate personal protective equipment (PPE), such as safety glasses and gloves, before operating the machine. Additionally, ensure that the machine is placed in a well-ventilated area to prevent any hazardous fumes.
Step 2: Prepare the material
Place the material on the cutting bed. Adjust the position and secure it in place using clamps or magnets to prevent it from shifting during the cutting process.
Step 3: Set the laser focus
Adjust the height of the laser nozzle to obtain the desired focus distance. The focus distance depends on the thickness of the material and the cutting requirements.
Step 4: Program the machine
Program the machine using the computer software to define the desired cutting path, including start and end points, cutting speed, and power. It is essential to select the correct material settings to ensure the laser provides accurate and clean cuts.
Step 5: Run the machine
Once the program is set up, ensure the machine is in the correct mode, i.e. cutting. Press the start button, and the machine will begin cutting the material according to the defined path and parameters.
Step 6: Remove the cut material
Once the machine has finished cutting, carefully remove the cut material from the bed. Use caution when handling the material, as the cut edges may be sharp.
Step 7: Clean the machine
After use, clean the machine thoroughly, removing any debris or residue on the lens, nozzle, and cutting bed. This helps to maintain the machine's performance and longevity.
Material of Laser Plate Cutting Machine
Steel: The frame of the machine is made of high strength steel to ensure stability and durability, which is critical for a laser cutting machine.
Laser source: The heart of the machine, the laser source generates the energy used to cut through the metal sheet. It is typically made of a combination of materials such as ceramic, glass, and crystal.
Lenses and mirrors: In order to direct the laser beam to the precise spot on the metal, a series of mirrors and lenses are used. These are typically made of high-quality quartz.
Control panel: The control panel is made of materials such as acrylic and plastic. It is used to activate and monitor the machine's operations.
Conveyor system: The conveyor system is made up of durable materials such as steel and PVC, which are resistant to wear and tear.
Software: The software used to operate the machine is typically designed using high-quality materials such as silicon and other semiconductors.
Application of Laser Plate Cutting Machine
Aerospace industry
The aerospace industry uses laser cutting machines to produce multiple complex components of the aircraft such as fuselage parts, wing parts, and turbine blades with high precision and accuracy. Since the aerospace industry requires high-quality components, the laser cutting machine is an ideal tool to achieve the desired result.
Automotive industry
The automotive industry uses laser cutting machines to produce various parts, including car doors, hoods, fenders, and chassis. The laser cutting machine ensures a smooth and precise cut, which saves time and money and increases quality.
Electronics industry
The electronics industry utilizes laser cutting machines to manufacture intricate components such as printed circuit boards (PCBs), microchips, and other electronic parts. Laser cutting machines provide high precision and accuracy in cutting small parts, which is necessary in the electronics industry.
Construction industry
The construction industry uses laser cutting machines to produce metal parts for buildings, bridges, and other infrastructures. The laser technology helps to achieve high precision and accuracy in cutting complex shapes and patterns.
How to Install Laser Plate Cutting Machine
Find a suitable location: This should be a well-ventilated area with enough space to accommodate the machine. The floor should be flat and able to support the weight of the machine.
Prepare power and air supply: The machine requires a power supply of 220V or 380V, depending on the specifications. Also, there should be a reliable air supply with a minimum pressure of 6 bar.
Unpack the machine: Carefully remove the machine from its packaging and visually inspect it for any apparent damages. Lift the machine and place it on its designated spot.
Assemble the machine: The machine comes in several parts that need to be assembled. Follow the manufacturer's instructions included in the package. Attach the laser head to the laser cutter, and ensure there are no loose screws.
Install the software: The machine is controlled by software that needs to be installed on a PC. Follow the instructions provided in the manual or contact the manufacturer for assistance.
Test the machine: Turn on the machine, and test its functionalities. Ensure the laser head is cutting successfully, and the software is communicating with the machine.
Set up the material on the cutting bed: The material that needs to be cut is positioned on the cutting bed. The cutting bed is usually made of a honeycomb or slat-style material to allow the laser to pass through.
Set up the laser: The laser is set up by attaching the laser head to the gantry and focusing the beam to the right intensity for the thickness of the material.
Start the program: The cutting program is loaded onto the machine's software, and the machine is turned on. The software program controls the laser beam to cut the material according to the preset design.
Monitor the cutting: The operator monitors the cutting process to ensure that the laser is cutting the material properly and making high-quality cuts.
Clean the machine: After the cutting process is complete, the machine must be cleaned, and any debris must be removed from the cutting bed and laser head.
Maintenance: Regular maintenance is crucial to ensure the machine continues to operate at the optimal level. Maintenance tasks may include cleaning, lubrication, and calibration.
FAQ
Q: How does a laser cutting machine work?
Q: Is it safe to use a laser cutting machine?
Q: What is the cutting accuracy of the laser cutting machine?
Q: What should I pay attention to when maintaining a laser cutting machine?
Q: What is the operating cost of a laser cutting machine?
Q: What are the functions of laser cutting machine?
Q: What is the principle of laser cutting?
Q: What is laser cut design?
Q: What are the properties and uses of laser?
Q: What are applications of laser?
Q: Which gas is used in laser cutting?
Q: What is the maximum plate thickness for laser cutting?
Q: How effective is laser cutting?
Q: Does laser cutting produce heat?
Q: Can you cut metal plate with a laser?
Q: What is the minimum hole size for laser cutting?
Q: How fast does a laser cutter work?
Q: Does laser cutting produce waste?
Q: Can laser cut iron?
Q: Can a laser cutter cut depth?
