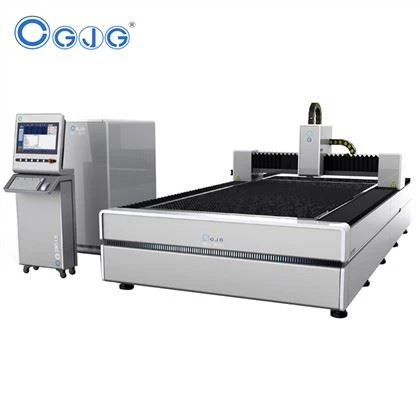

Fiber Laser Cutting Machine Cutting Metal 3000X1500

High Quality Fiber Laser Cutting Machine for Metal 3015 is fast speed mild steel CNC fiber laser cutting machine with 3000*1500mm working area, which consist of machine tool,motion parts, electrical equipment control parts, and other assist parts. Via control system to operation three axis motion parts,so it can drive to fiber laser cutting head achieve a stable, accurate, and high speed moving; X and Y axis of aluminium stainless steel sheet cutting machine adopt by imported with original packaging high quality and precision HIWIN linear guide rail, working table adopt by square pipe to welding the overall machine, stress relief annealing treat, the max load-bearing of mesa could get 500 KG, it also has universal ball bearing, machine external set up peripheral clamping device, use full enclosed dust proof device, photoelectric sensor, and other precise positioning parts to ensure accuracy of the transmission.

Send Inquiry

Product Description

Application:

CNC Fiber Laser Cutting Machines are widely used in manufacture Billboard, Signs, Advertising, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.

Fiber Laser Cutting Machine Cutting Metal 3000X1500

Details :

Specification

Items		Parameters
Model		CG Series
Size:		3000x1500mm
Laser power		1000w 1500w 2000w 3000w with more different customized
Cutting speed		0-100m/min
Working voltage		50Hz/60Hz/60A
Reducer		Japanese Shimpo Reducer
Cooling method		water cooling
Control System		Cypcut/ Weihong
Wave Lenth		1080nm
Cutting Width(X&Y)		15003000mm 20004000mm (can be customized)
Laser Media		Fiber Laser
Voltage Requirements		220v or 380v/50Hz~60Hz
Min.Route Width		0.1mm
Reposition Accuracy		±0.05mm
Aiming Positioning		Red Dot
Pipe Material Length		0~6000mm
Pipe Material Diameter		10~300mm(Optional)
PS.All the working area and specifications can be customized according to your requests

Product packaging

Package and delivery the fiber laser cutting machine
1.Anti-collision package edge: All parts of the machine are covered with some soft materials, mainly the use of pearl wool .
2.Fumigation wooden box:Our wooden box is fumigated, do not need to check the wood, saving the transport time.
3.Whole film packaging machine: Avoid all damage that may occur during delivery. Then we will cover the plastic package tightly to
ensure that the soft material is covered intact, also avoiding water and rust.
The outermost is a wooden box with a fixed template.

3.Wooden box at the bottom of a solid iron socket for easy handling.
