CGJG T Series Professional Tube Laser Cutting Machine
2 It adopts an pneumatic clamp design on both sides and it can modulate the center automatically
3 It employs intelligent tube support design, which can solve the deformationproblems in the process of long tube cutting.
Send Inquiry
Product Details ofCGJG T Series Professional Tube Laser Cutting Machine
CGJG Laser is a Professional laser equipment manufacturer. Metal pipe processing sharp tool,easy to deal with various pipes.The whole series of products have realized modular design and free combination.Laser Source IPG/RAYCUS/MAX choose,fiber laser power 1KW to 6KW choose,ensure a big cutting ability,stable performance and lifespan is over 100,000 hours. CGJG fiber laser cutting machine is equipped withJapanese Yaskawa motor, French Motoreducer and Taiwan APEX rack. The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1G. The working life is up to 10 years.
Technical Parameter
Subitem | T16560 | T23060 | M35060/350120 | M65060/650120 | |
Scope of pipe processing | φ10-φ165mm | φ10-φ230mm | Φ20-φ350mm | Φ40-φ650mm | |
Max. acceleration | 1G | 1G | 1G | 1G | |
Maximum length of pipe | 6100mm | 6100mm | 12000mm | 12000mm | |
Maximum speed of axis | 110r/min | ||||
X-axis idling speed | 50m/min | ||||
Maximum load of single chuck | 120kg | 300kg | 900kg | 120kg | |
Optical system | laser head | WSX/Raytools/Precitec | |||
Laser source | MAX/Raycus/IPG | ||||
mechanical system | Machine bed | Plate welded bed | |||
Gantry structure | Aviation Aluminum Beam | ||||
X/Y/Z-axis Servo | Yaskawa | Yaskawa | Yaskawa | Yaskawa | |
Linear Rails | HIWIN/PMI | HIWIN/PMI | HIWIN/PMI | HIWIN/PMI | |
Rack | APEX | APEX | APEX | APEX | |
Electrical system | Control system | CypCut | CypCut | CypCut | CypCut |
Breaker | France Schneider | France Schneider | France Schneider | France Schneider | |
Relay | Schneider/ ABB | Schneider/ABB | Schneider/ABB | Schneider/ABB | |
Electrical proportional valve | Japan SMC/Germany AVENTICS | ||||
O2 gas control valve | Japan SMC | ||||
N2 gas control valve | Japan SMC | ||||
Machine Details
|
Steel Welded Machine Bed |
 |
Pneumatic Chuck |
|
Raycus/MAX/IPG Laser Source |
 |

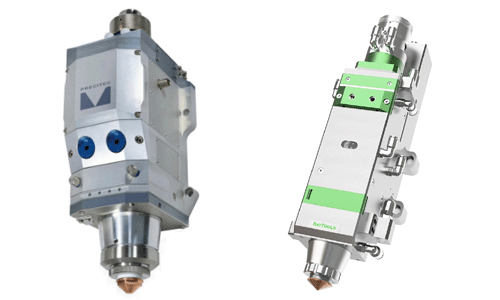

RayTools/Precitec/WSX Cutting Head |
 |
Taiwan APEX Rack |
 |

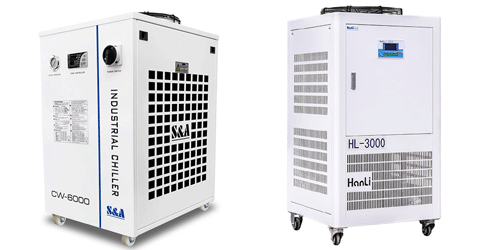

S&A/Hanli Water Chiller Choose |
Industry Applications
Carbon steel tube cutting，Aluminum alloy tube cutting，SS Pipe cutting ，Titanium Tube cutting
Honor Certificate
FAQ
Q1:Where is your factory located?
We are in Jinan city of China, 30 mins from Jinan Yaoqiang airport.
Q2:How can I get a sample to check your quality?
We can cut samples from your design and send to you.
Q3:How long can I expect to get the sample?
Genrally in 3-10 days after laser cutting.
Q4:Packaging & Shipping
Wood case and protection film.
4 sets 3015 Single table in 40 foot container.
Q5:What about the lead time for mass production?
Usually 30 days depends on fiber laser cutting machine type.
Q6:Does your product have warranty service? How long is the warranty period?
2-year warantry for fiber laser cutting machine.
Q7:How to provide technical support to customers?
We provide after sales service and technical training.We committed to provide customers a good purchasing experience.
Q8:How to become your overseas agent?
We are very glad to cooperate with you as our agent, we will provide more preferential policies.
