Product Introduction:

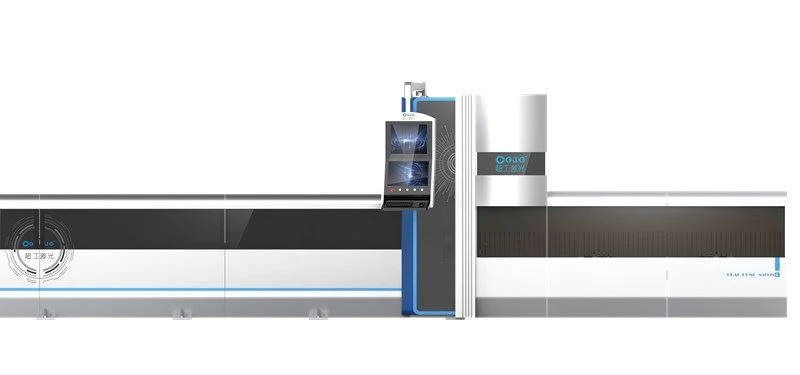

A classic and best-selling professional pipe laser cutting machine

Equipped with the latest pneumatic chuck

Process database to realize stable processing with high precision and high efficiency

High performance laser source and stable operating system make the cutting effect best

Gantry structure is adopted to achieve higher stiffness, stability and impact resistance

Configuration&Technical Parameters:

Mode	CG-T6023
Laser Power	1KW/1.5KW/2KW/3KW/4KW/5KW/6KW(Optional)
Repeat Positioning Accuracy	±0.02mm
Max. acceleration	1G
Maximum speed	100m/min
Maximum Rotating Speed of Chuck	120r/min
Chuck Drive Types	Pneumatic Chuck
Shortest Remaining Material	0.12m
Chuck	Eight Claw Pneumatic Chucks with Auto-centering
Laser Source	Raycus/IPG/MAX/FeiBo/Nlight(Optional)
Fiber Cutting Head	Raytools/WSX(Optional)
Gear Rack	Taiwan Apex(grade 6 grinding)

Key Parts:

Chuck Clamp:

Adopting electric clamp design on both sides which can achieve quickly center positioning and greatly improve the work efficiency

Strong clamp strength ,stable,high precision,long service life and wide range. The diagonal adjustable range is 20~200mm

Fast automatic centering, strong clamp strength,high clamp precision,small wear,stability and goog dynamic performance

Good safety and reliability: strict factory inspection for 0% risk of pressure test and error test.

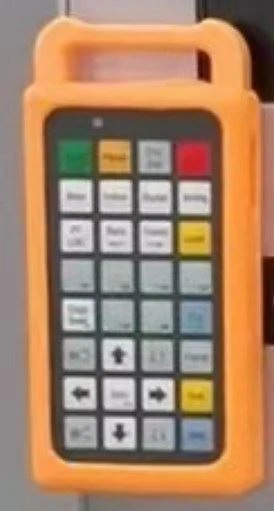

Wireless Control Handle:

Adopt wireless remote control handle and control the pressure of clamp, which make the control and operation simple and reduce the tube deformation.

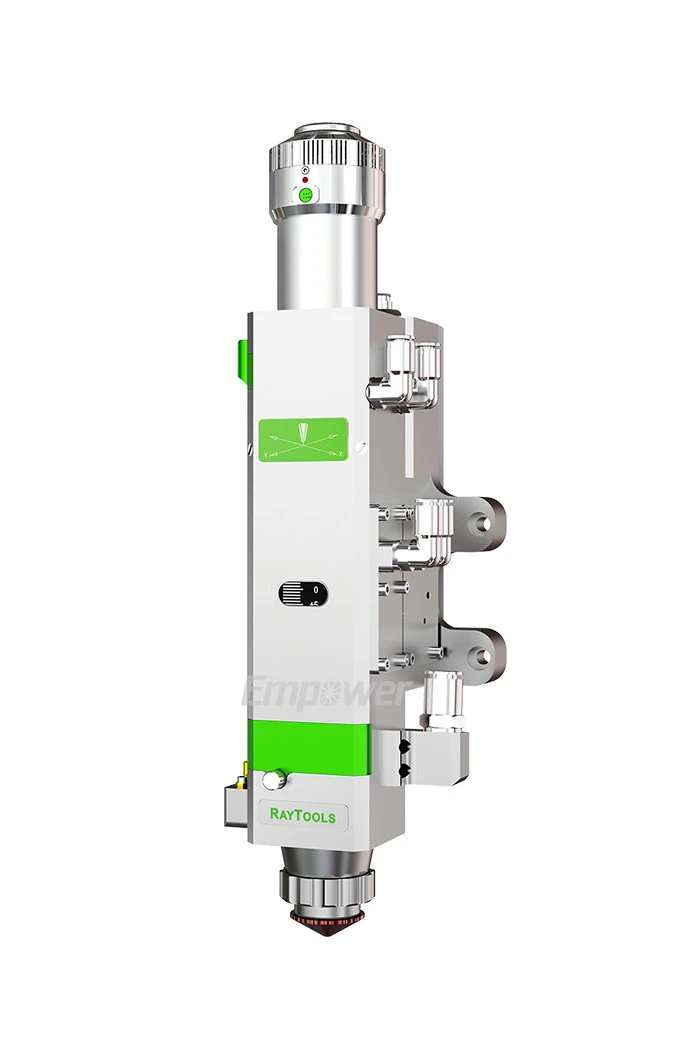

Intelligent Cutting Head:

High adjustment precision and range : range+10mm~-12mm, accuracy ≤50μm, suitable for fast perforation of thick plate and automatic cutting of plates different thickness and materials

- Optimized optical and water-cooling design enables the laser head to operate continuously and stably for a long time at high power.

image007(001)

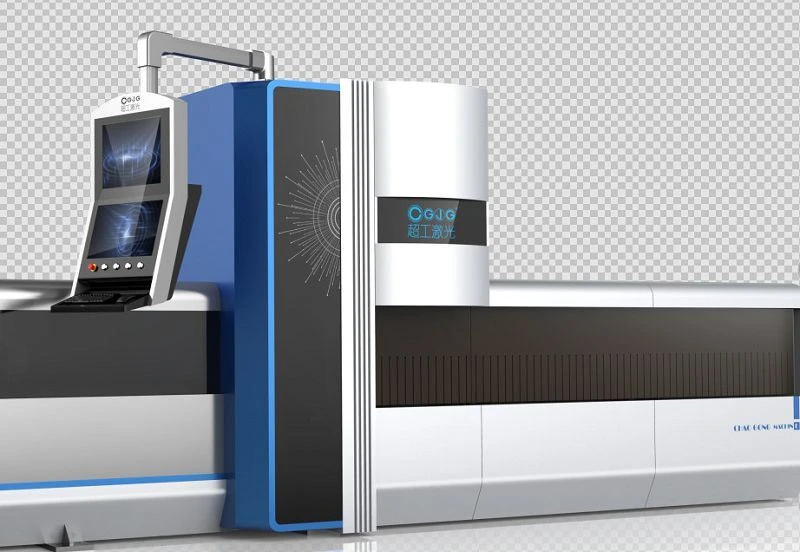

Servo Driver and Motor-Lead-motion:

Adopt China Lead-motion motor with high synchronous . Control response time reaches microsecond. The control method has the advantages of fast response time and anti-interference ability. It ensures the synchronous and stability of the machine tools at high speed and greatly improves the service life of the machine tool and the servo motor.

image011(001)

Interface display:

HD display is convenient to operate with low power consumption,high resolution and brightness,fast response and simple interface operation.

Cutting Material and Range

CG Fiber Laser Metal Tube Cutting Machine can be used for cutting various metal plate and pipe, such as carbon steel, stainless steel,,galvanized steel, copper/aluminum plate, alloy plate and rare metals, etc.

Can be used for cutting of the square pipe,rectangular pipe,elliptical pipe,waist pipe,round pipe,angle steel,channel steel and other metal pipes.

Cutting Range：

Length of pipe:6400mm

Diameter of pipe:Φ20-Φ220mm

Wall thickness of pipe:

Carbon Steel: 0.5-40mm

Stainless Steel: 0.5-35mm
