Professional pipe laser cutting machine

The newest pneumatic chuck

The machine owns perfect cooling system, lubrication system and dust removal system, to ensure that it can operate stably, efficiently and durably.

Configuration&Technical Parameters:

Fiber Laser Cutting Machine Configuration: standard suitable for 2000W 3000W

Laser Source: MAX/RAYCUS 2000W/3000W

Cutting Head: Raytools auto focus cutting head BM111

Control System: CYPCUT controller FS2000

Servo motor: Japan Yaskawa Y: 1300W Y:1300W X: 850W Z:400W

Dual-temperature: S&A/Hanli cooling system;

Guide rail : PMI guide rail

Rack: APEX /YYC rack

Machine bed: Heat treated heavy sheet welding machine bed;

Gantry : Aluminium gantry

Reducer: MOTOVARIO reducer

Automatic lubrication system

Computer: Industry computer

Mode	CG-T6035
Weight	5500KG
Tube Size Range	Length:6400mm Hold Diameter:Φ20-Φ350mm
Laser Power	1KW/1.5KW/2KW/3KW/4KW/5KW/6KW(Optional)
Repeat Positioning Accuracy	±0.02mm
Max. acceleration	0.8G
Maximum speed	100m/min
Maximum Rotating Speed of Chuck	100r/min
Chuck Drive Types	Pneumatic Chuck
Shortest Remaining Material	0.12m
Laser Source	Raycus/IPG/MAX/FeiBo/Nlight(Optional)
Fiber Cutting Head	Raytools/WSX(Optional)
Servo Motor	Japan YASKAWA
CNC Control System	Cypcut Studio
Gear Rack	Taiwan Apex(grade 6 grinding)

Key Parts:

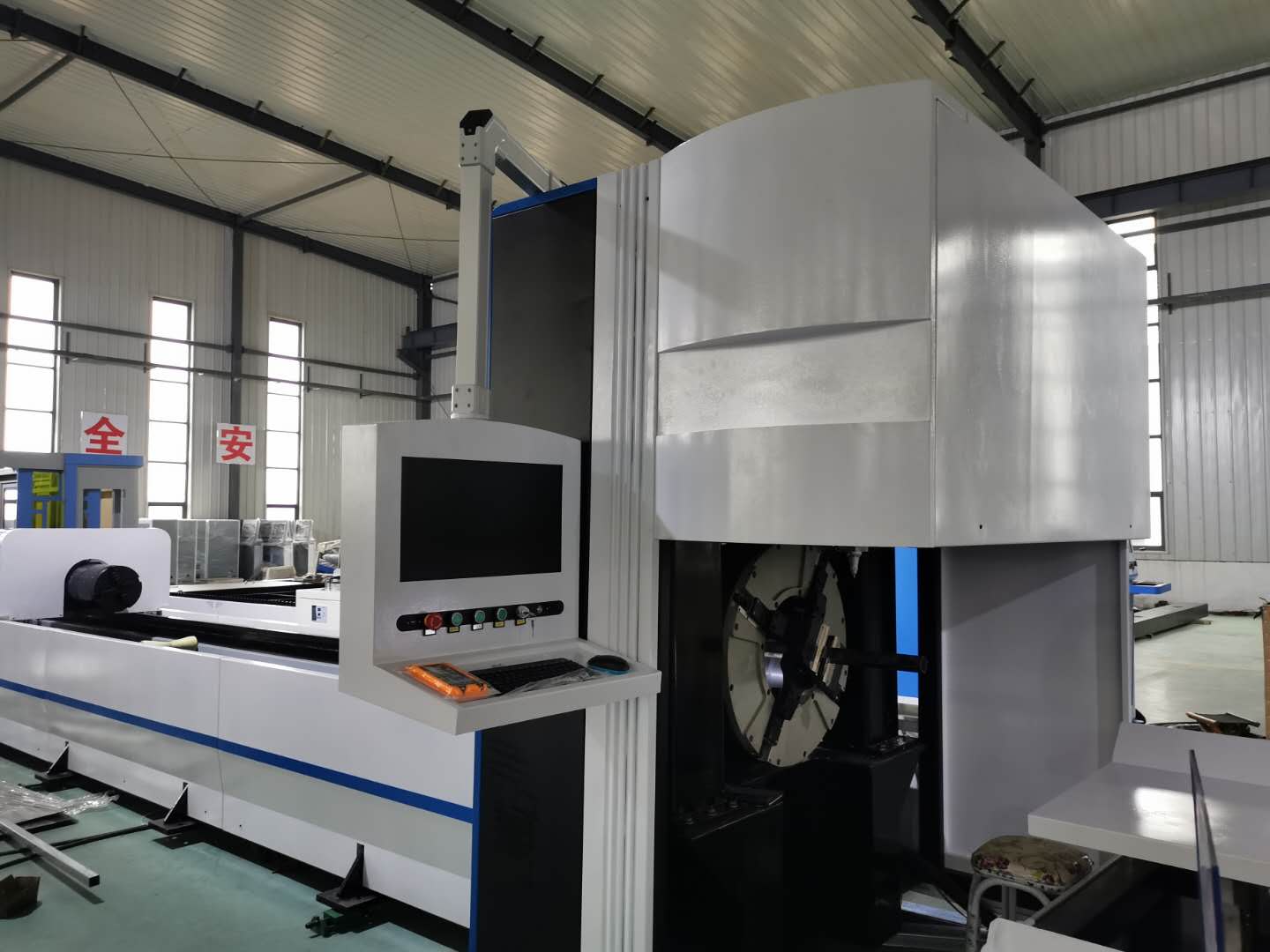

Round tube Fiber Laser Cutting Machine

Chuck Clamp:

Automatic centering has the advantages of high speed, strong clamping strength, high clamping precision, small wear, good stability and good dynamic performance

Good safety and reliability: the risk of strict factory inspection, stress test and error test is 0%.

Round tube Fiber Laser Cutting Machine

Intelligent Cutting Head:

High performance and high efficiency special laser cutting head

Focus compensation, control focus offset and ensure the stability of long-time cutting.

Round tube Fiber Laser Cutting Machine

Servo Driver and Motor-YASKAWA:

Adopt Japan YASKAWA motor ,no adjustment function,real-time use,automatic tuning function,excellent performance.

Round tube Fiber Laser Cutting Machine

Independent cabinet:

Strong anti-interference ability:

All photoelectric isolation technology and software anti-interference technology are adopted to improve the anti-interference ability of the system.

Cutting Material and Range

CG Fiber Laser Metal Tube Cutting Machine can be used for cutting various metal plate and pipe, such as carbon steel, stainless steel,,galvanized steel, copper/aluminum plate, alloy plate and rare metals, etc.

Can be used for cutting of the square pipe,rectangular pipe,elliptical pipe,waist pipe,round pipe,angle steel,channel steel and other metal pipes.

Cutting Range：

Length of pipe:6400mm

Diameter of pipe:Φ20-Φ350mm

Wall thickness of pipe:

Carbon Steel: 0.5-40mm

Stainless Steel: 0.5-35mm
